TAPESKJØT SMXB 3-3 185-300/25-95MM² AL/CU 12/24KV
Product number
1142255
TAPESKJØT SMXB 3-3

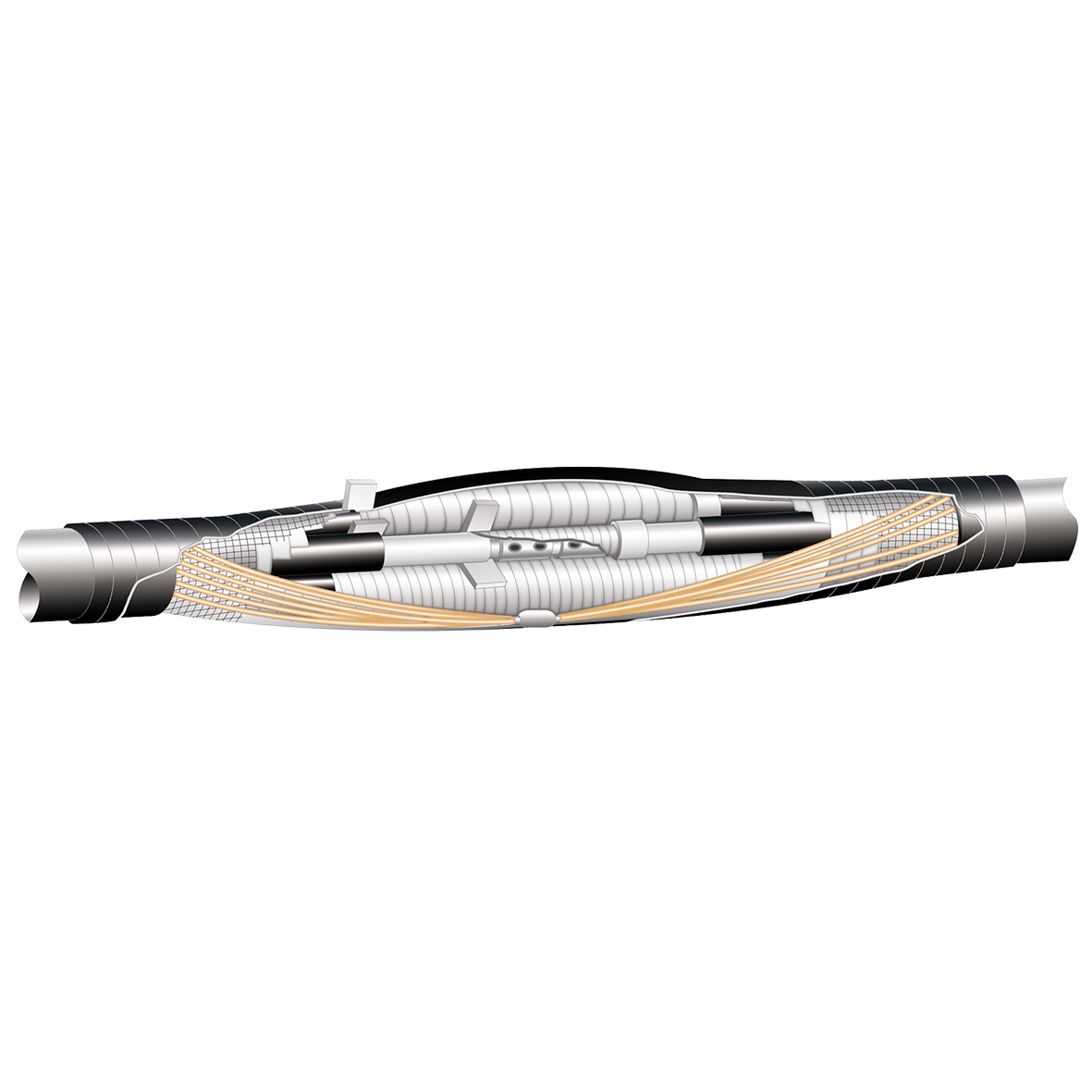

For skjøting av pex- og EPR-isolert 3-leder kabel med både Al- og Cu-leder. Skjøten består av taper, felstyrende duk og Cu-nett. Leveres uten skjøtehylse. Tverrsnitt 185-240Al/240-300Cu 12kV, 25Al/25-95Cu 24kV
Product details
Technical specifications
Rated voltage U0/U (Um)12.7/22 (24) kV
ModelCold-shrink
Insulating materialPlastic
For connection of paper- with plastic insulated cablesno
Number of conductors3
Nominal cross section conductor25 - 300 mm²
Mining sector approvalno
With concentric shieldingyes
Suitable forOther
Connection accessories includedNone
Halogen freeno
Product codes
SAPAQM501
El number1142255
Product number1142255
GTIN/EAN7331980001828
Manufacturer part number6265.0013.4
Vendor material number6265.0013.4
Basic information
Package measurements (L x W x H)194 x 244 x 215 mm
Package volume10.177 l
Package weight4 kg
Base uniteach
Package units1 / 3
Usage quantity–
UNSPSC32000000
BrandNKT
Country of OriginSE Sweden
