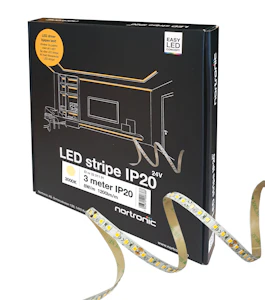

LEDSTRIP ELC 830 24V 8W 1200LM 3M
Product number
3201191
LEDstrip ELC 830 24V 8W 1200lm 3m
·LEDtape ELC 8 W/meter
·Lengde 3 meter
·Spenning 24V
·1200 lumen/meter
·150 lumen/watt
·Fargetemperatur 3000K
·RA>80
·Maks lengde pr. tilkobling 10m
·Kuttlengde 6,25cm
·Antall LED pr meter 128 / pitch 7,8mm
·Størrelse 3000x8x1,2mm
·Selvklebende 3M tape
·Kapslingsgrad IP 20
·Levetid 50 000 / L70
·Energiklasse D
·2m tilkoblingskabel i hver ende
Product details
Technical specifications
ModelStrip
Mounting methodOther
Lamp typeLED not exchangeable
Number of nodes per meter128
Number of nodes per foot42.667
Lamp power per meter8 W
Lamp power per foot2.667 W
Luminous flux per meter1200 lm
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Product codes
SAPCQA707
El number3201191
Product number3201191
GTIN/EAN7043810008388
Manufacturer part number3201191
Vendor material number3201191
Basic information
Package measurements (L x W x H)200 x 200 x 25 mm
Package volume1 l
Package weight0.3 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandNORTRONIC
Country of OriginCN China
Customs tariff code85415000
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30
GWP uniteach
Data source for GWPco2data.fi
ID from emition database7000000490
