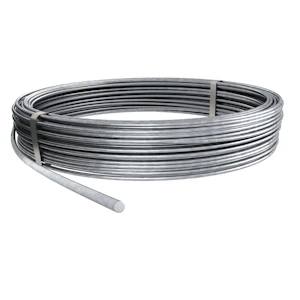

Rundleder RD8-FT
Product number
1234386
RUNDLEDER RD8-FT
Rundleder, Galvanisert Stål Ø8mm. 50mm²
• I henhold til DIN EN 50164-2 (VDE 0185 del 202)
• Oppfyller kravene i henhold til DIN VDE 0185-305 (IEC 62305)
• RD 10 kan også brukes i jorden
• Galvanisert: 350 g / m² (. Ca 50 μm)
Product details
Technical specifications
Diameter conductor8 mm
Conductor cross section50 mm²
Outer diameter incl. sheat/cover8 mm
Conductor categoryClass 1 = solid
Number of strands1
Conductor materialSteel
Characteristic conductor materialOther
Surface protectionHot-dip galvanised
Sheathing materialNone
Sheathing material halogen freeno
ColourOther
High-voltage-proof insulated modelno
Suitable for EX-applicationsno
Weight40 kg/100 m
Product codes
SAPGBU773
El number1234386
Product number1234386
GTIN/EAN4012195381556
Manufacturer part number5021081
Vendor material number1234386
Basic information
Package measurements (L x W x H)900 x 900 x 80 mm
Package volume64.8 l
Package weight0.1 kg
Base uniteach
Package units125
Usage quantity1
UNSPSC46182103
BrandOBO BETTERMANN
Country of OriginDE Germany
Customs tariff code76169900
