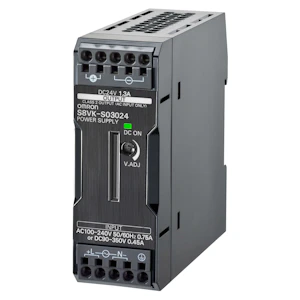

S8VK-S STRØMFORSYNING 30W,24VDC,1.3A
Product number
4123397
S8VK-S strømf.30W,24VDC,1.3A
Strømforsyning, plasthus, 32x78,5x90 (BxHxD), DIN skinne montering, 1-fas 100-240VAC forsyning, 30W, 24VDC (-10% til +15% justerbar, 1.3A, -25⁰C til +60°C omgivelsestemperatur. Push-in terminal
Product details
Technical specifications
Voltage type (supply voltage)AC/DC
1st secondary output voltage21.6 - 28 V
Max. output current 11.56 A
Secondary voltage adjustableyes
Nominal value output voltage 124 V
Nominal value output current 11.3 A
Short-circuit-proofyes
Rated supply voltage AC 50 Hz100 - 240 V
Rated supply voltage AC 60 Hz100 - 240 V
Rated supply voltage DC90 - 350 V
Output voltage stabilizedyes
Power consumption82.8 VA
Power output30 W
Stabilizedyes
Type of electric connectionOther
Product codes
SAPCNM524
El number4123397
Product number4123397
GTIN/EAN4549734134620
Manufacturer part number675333
Vendor material number675333
Basic information
Package measurements (L x W x H)90 x 32 x 90 mm
Package volume0.259 l
Package weight0.25 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandOMRON
Country of OriginCN China
