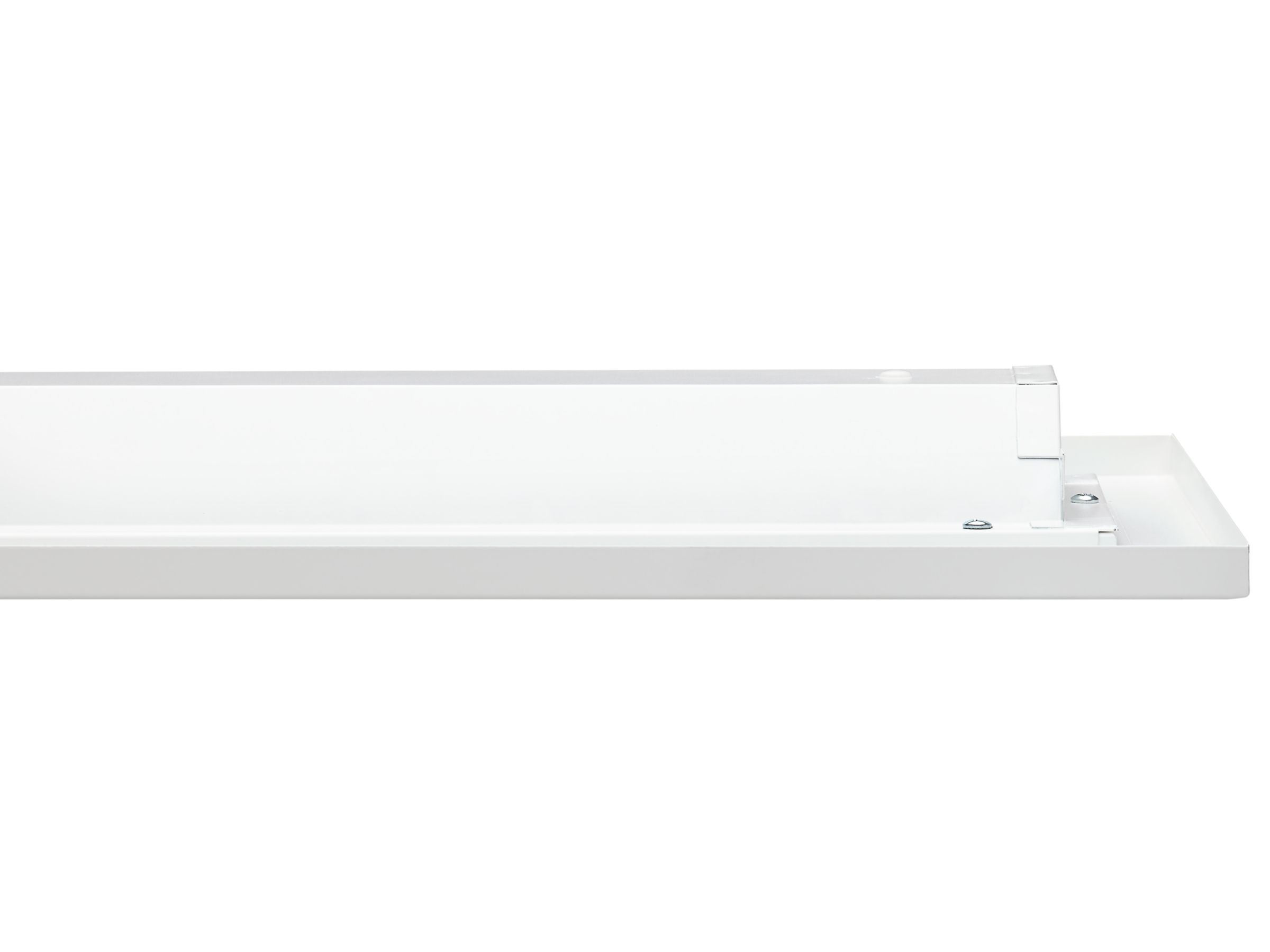

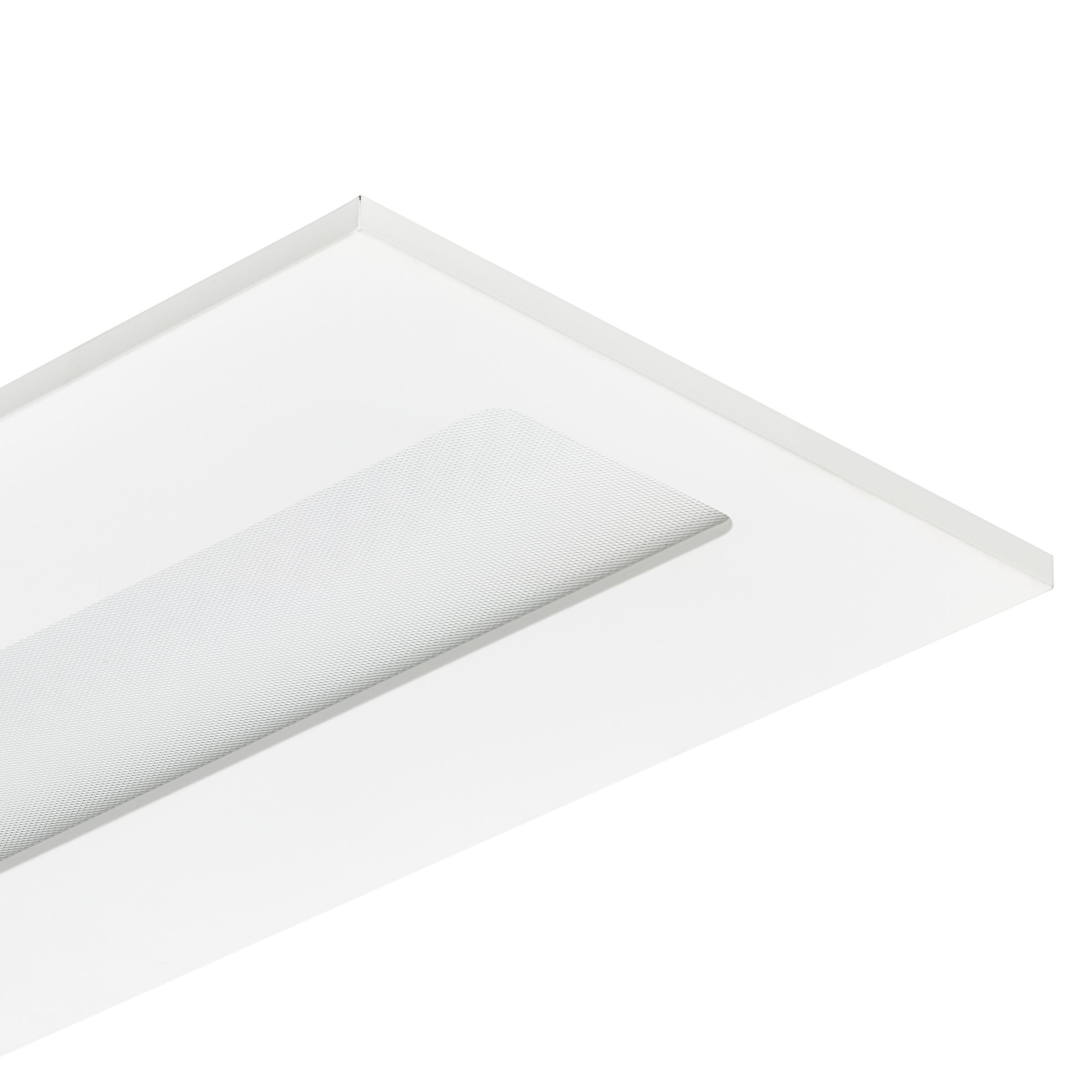

Innfelt 34-5700lm 30x120 DALI
Product number
3316342
CoreLine innfelt - All-in - 23/38.5W - 300x1200 mm - 3400/4300/5700 lm - 3000 K - DALI - UGR19

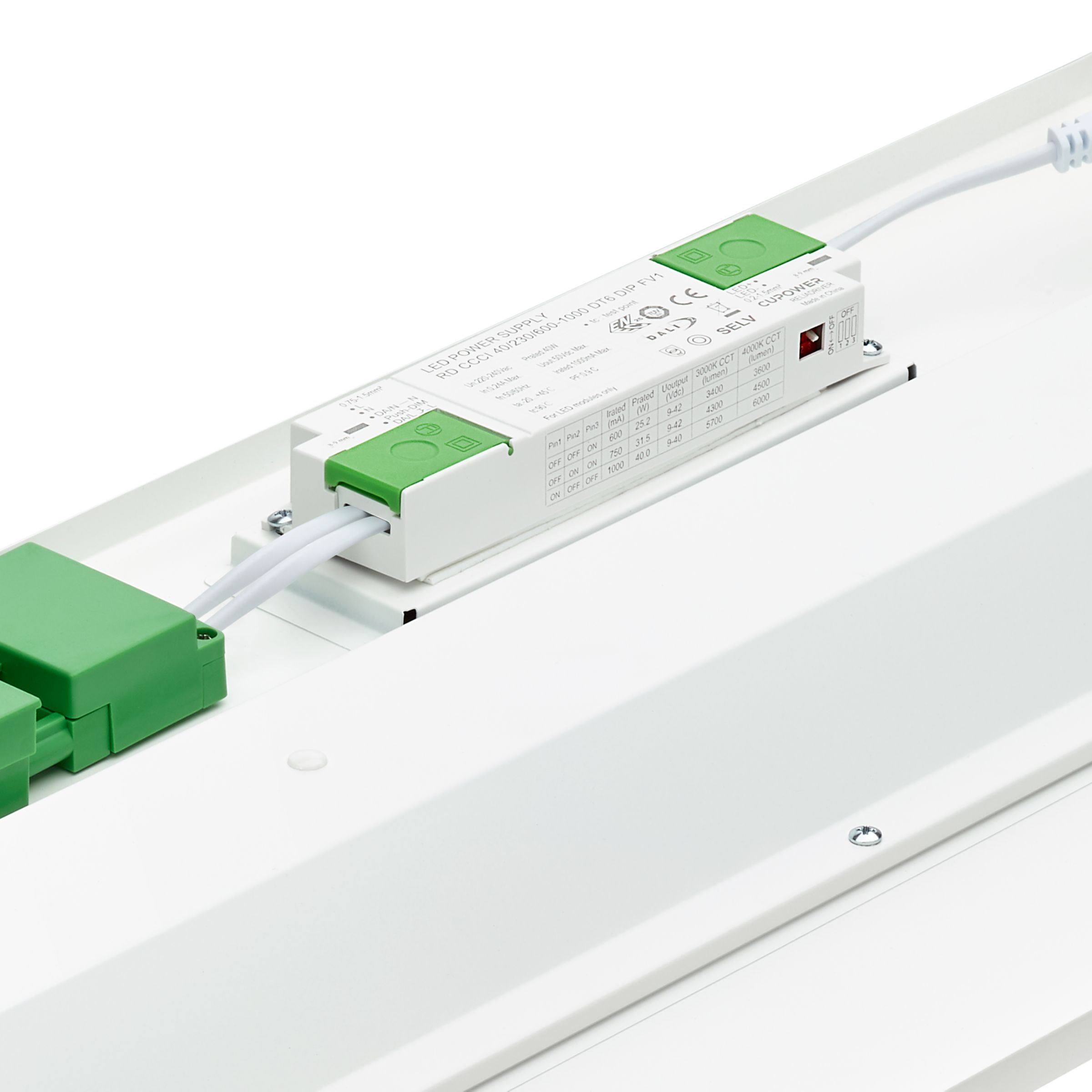

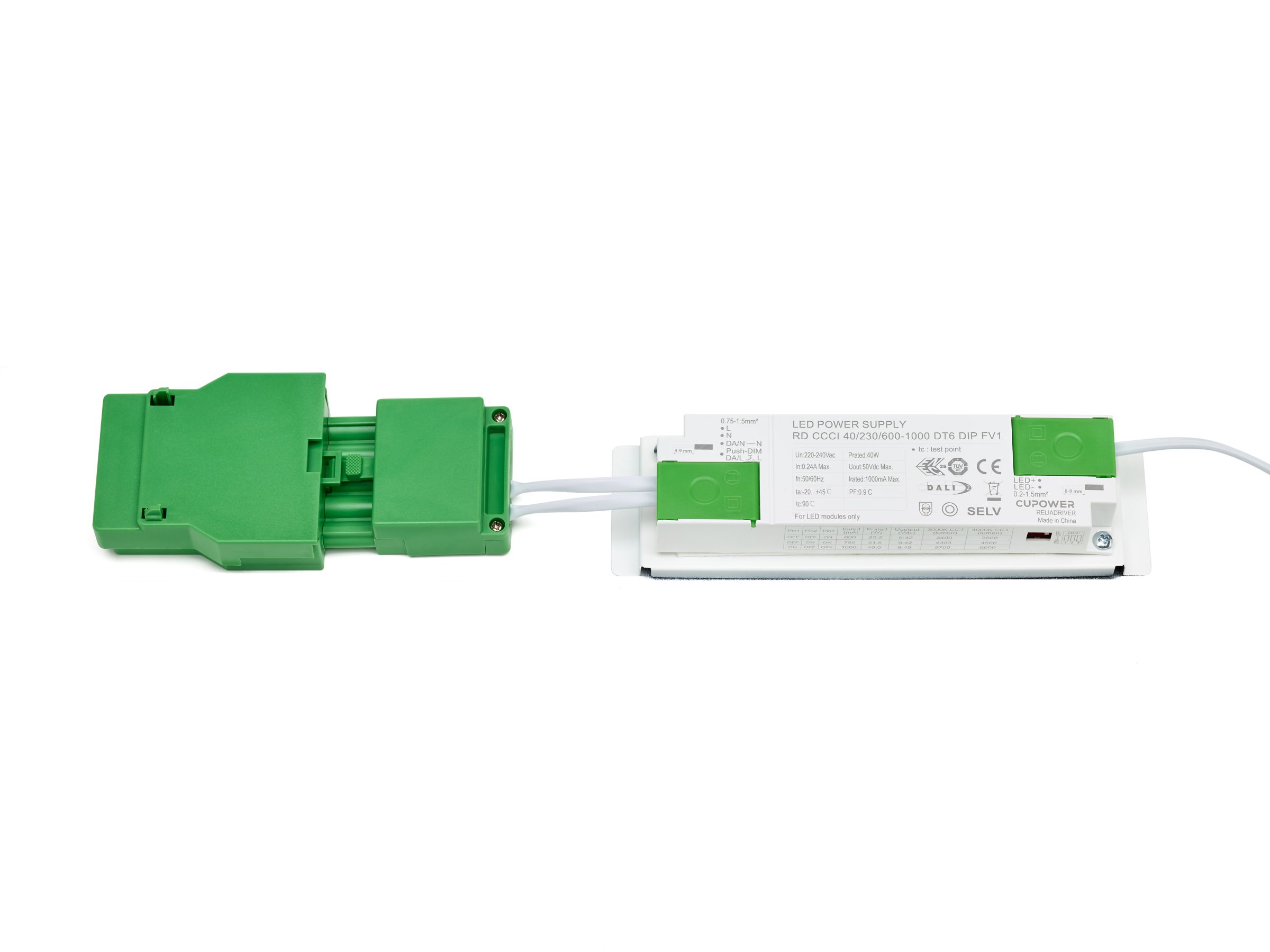

300x1200 mm, Visible profile ceiling version, Stål, Hvit RAL 9003, Signal hvit (RAL9003), Strømforsyningsenhet med DALI-grensesnitt, All-in, Multi Lumen, 3400 lm, 4300 lm, 5700 lm, 38.5 W, 23 W, 148 lm/W, 148 lm/W, 3000 K, (0.44,0.40)SDCM3, CRI≥80, UGR19, Bredstrålet, overholder kontorstandarder, Diamant, Polykarbonat, IP20/44 | Fingerbeskyttet, ledningsbeskyttet, sprutsikker, IK03 | 0,35 J armert, Sikkerhetsklasse II, Kabel uten plugg, 5-pols, Push-in-kobling, 4-pols, SC | Sikkerhetskabel
Product details
Technical specifications
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, structured
Product codes
SAPDJT289
El number3316342
Product number3316342
GTIN/EAN8720169764118
Manufacturer part number911401840687
Vendor material number3316342
Basic information
Package measurements (L x W x H)1200 x 300 x 45 mm
Package volume16.2 l
Package weight2.95 kg
Base uniteach
Package units1 / 4 / 48
Usage quantity–
UNSPSC32000000
BrandPHILIPS
Country of OriginCN China
