Innfelt 36-6000lm 60x60 DALI
Product number
3316345

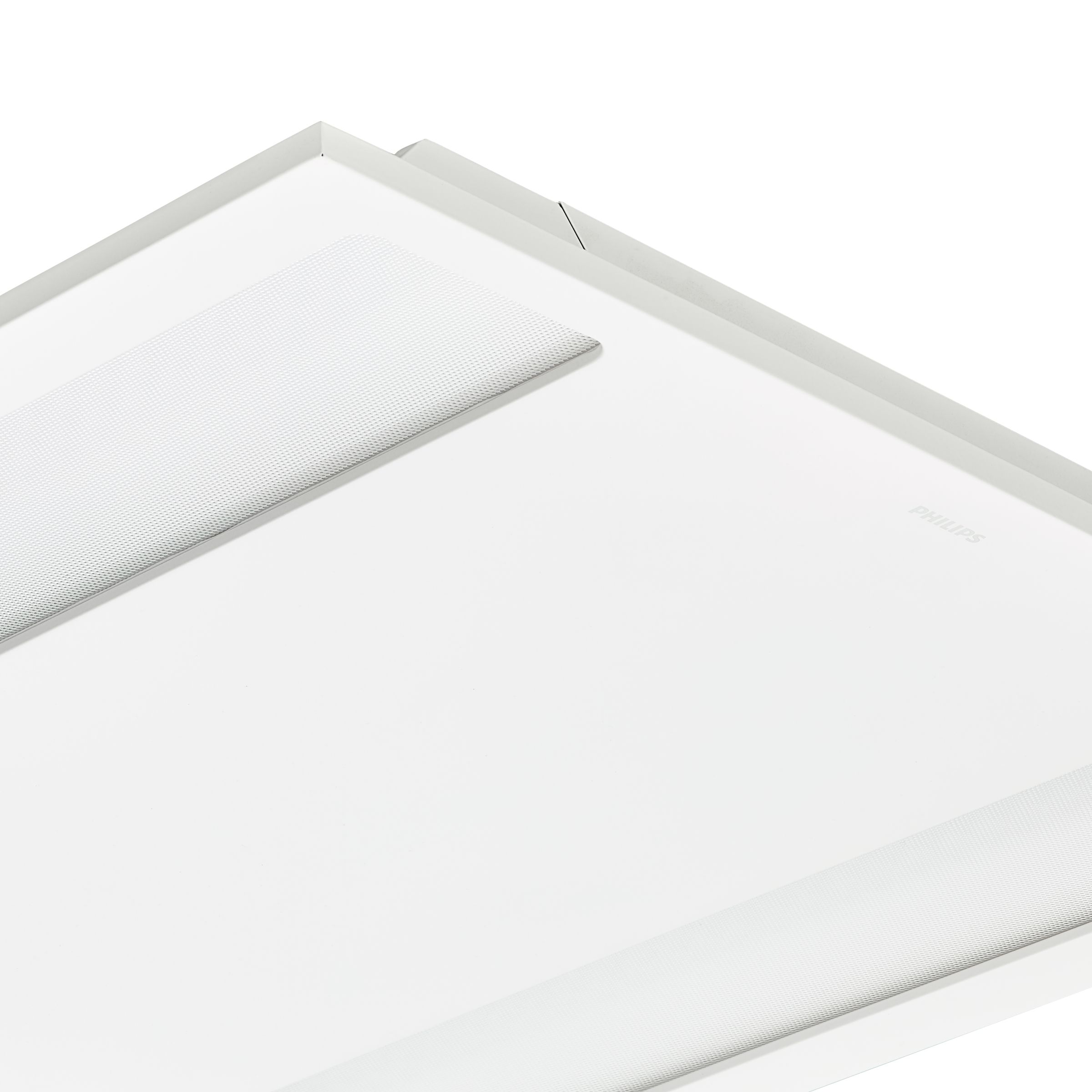

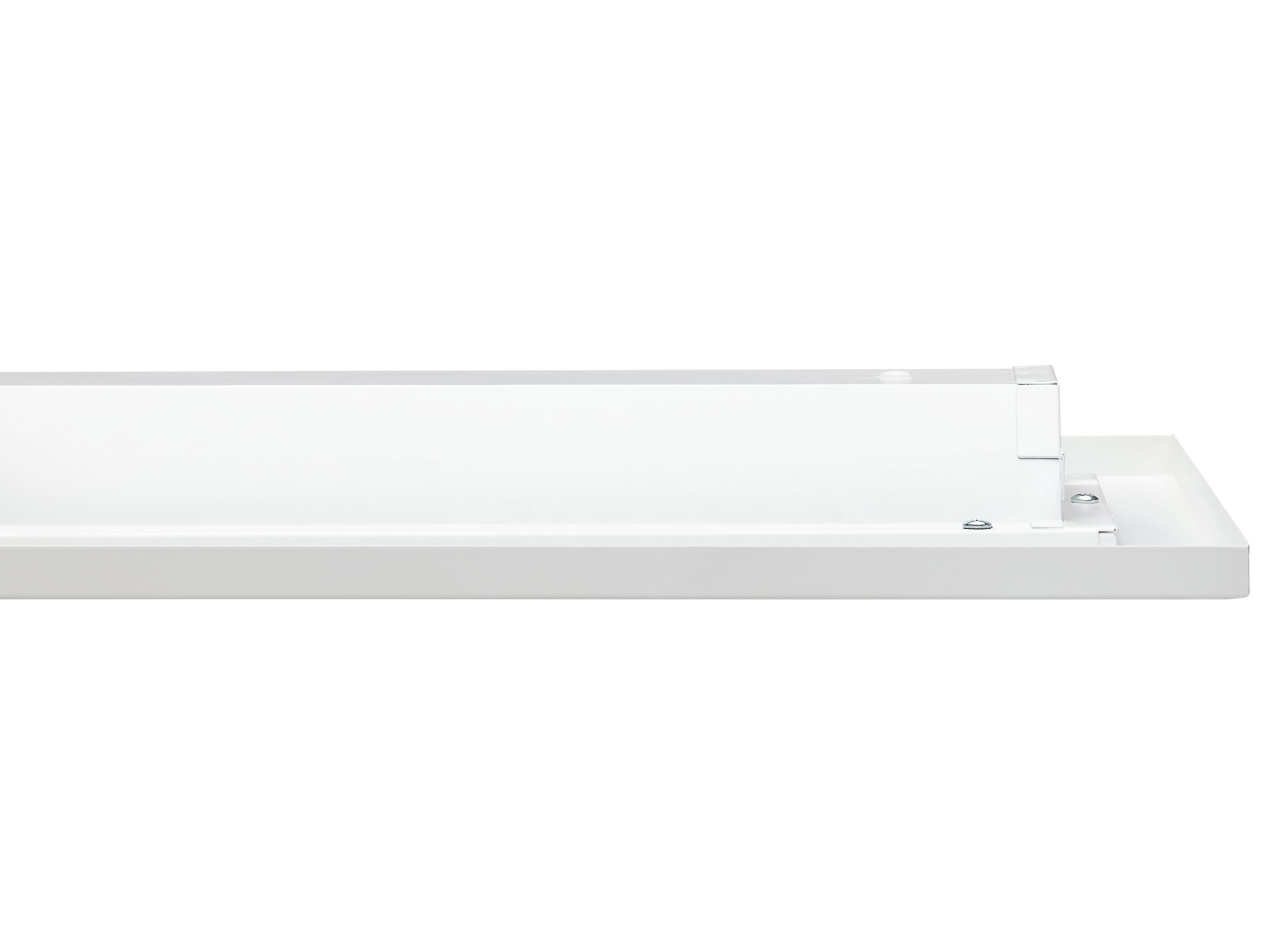

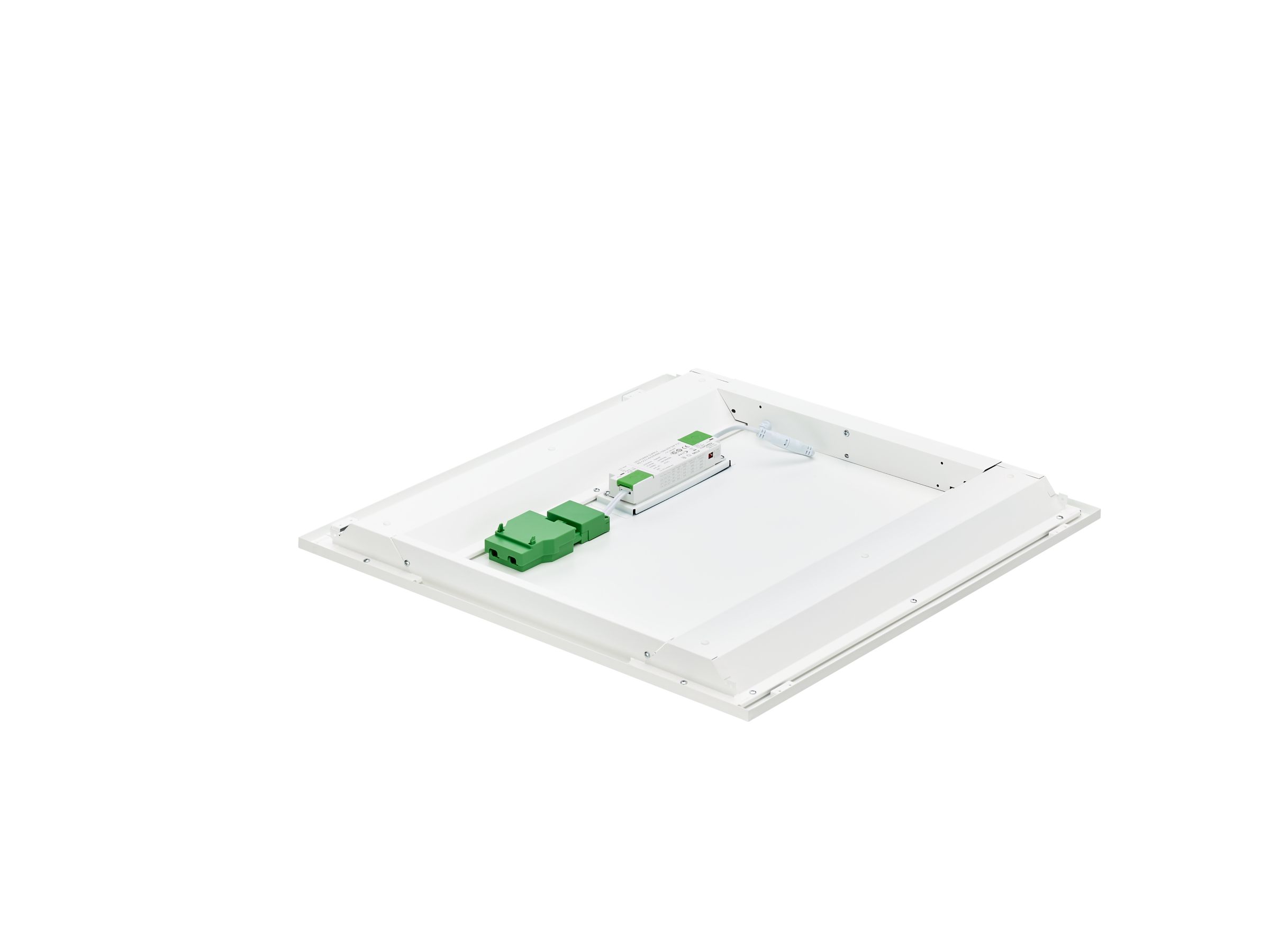

CoreLine innfelt - All-in- 23/38.5W - 600x600 mm - VPC - 3600/4500/6000 lm - 4000 K - DALI - UGR19

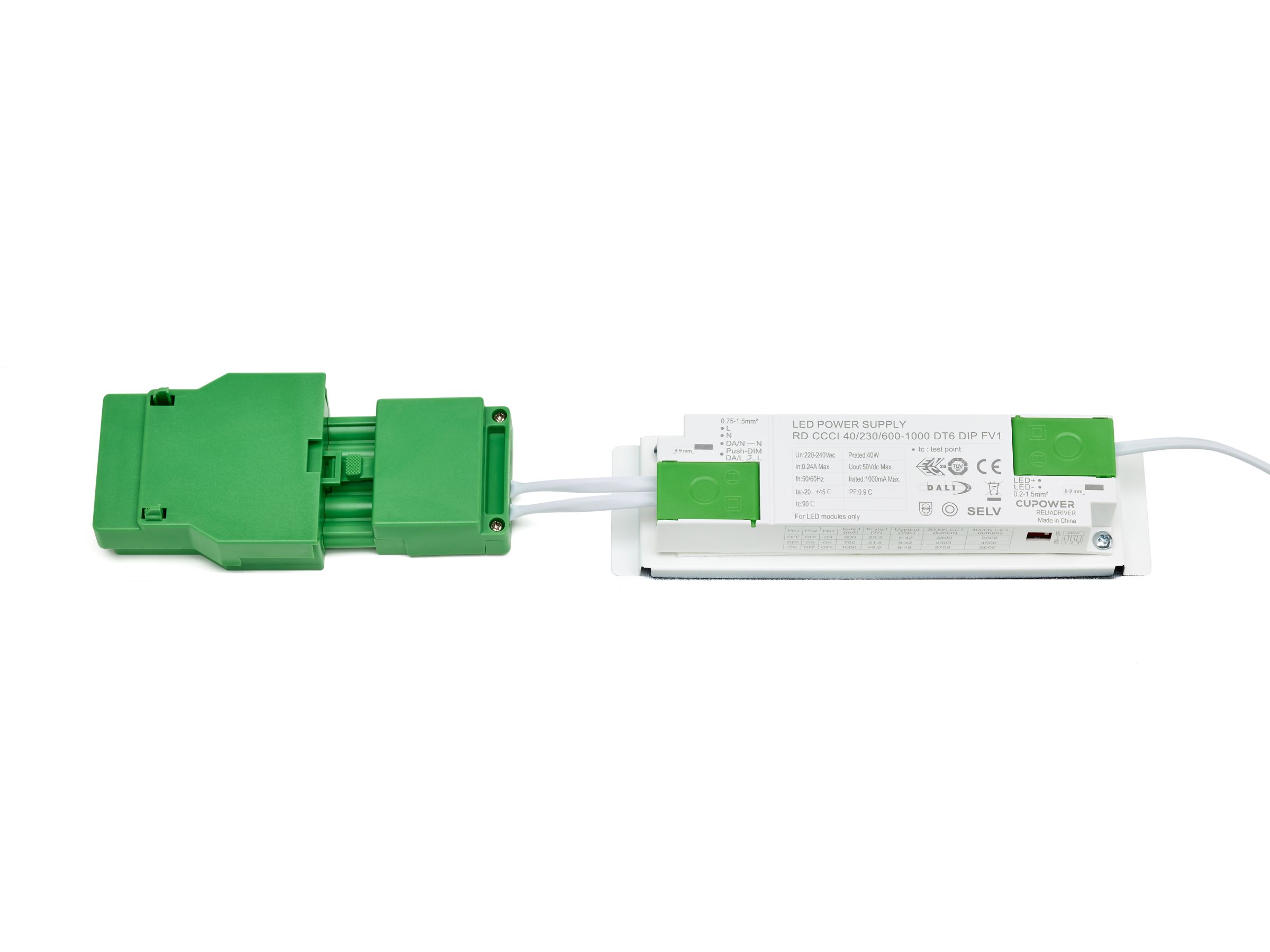

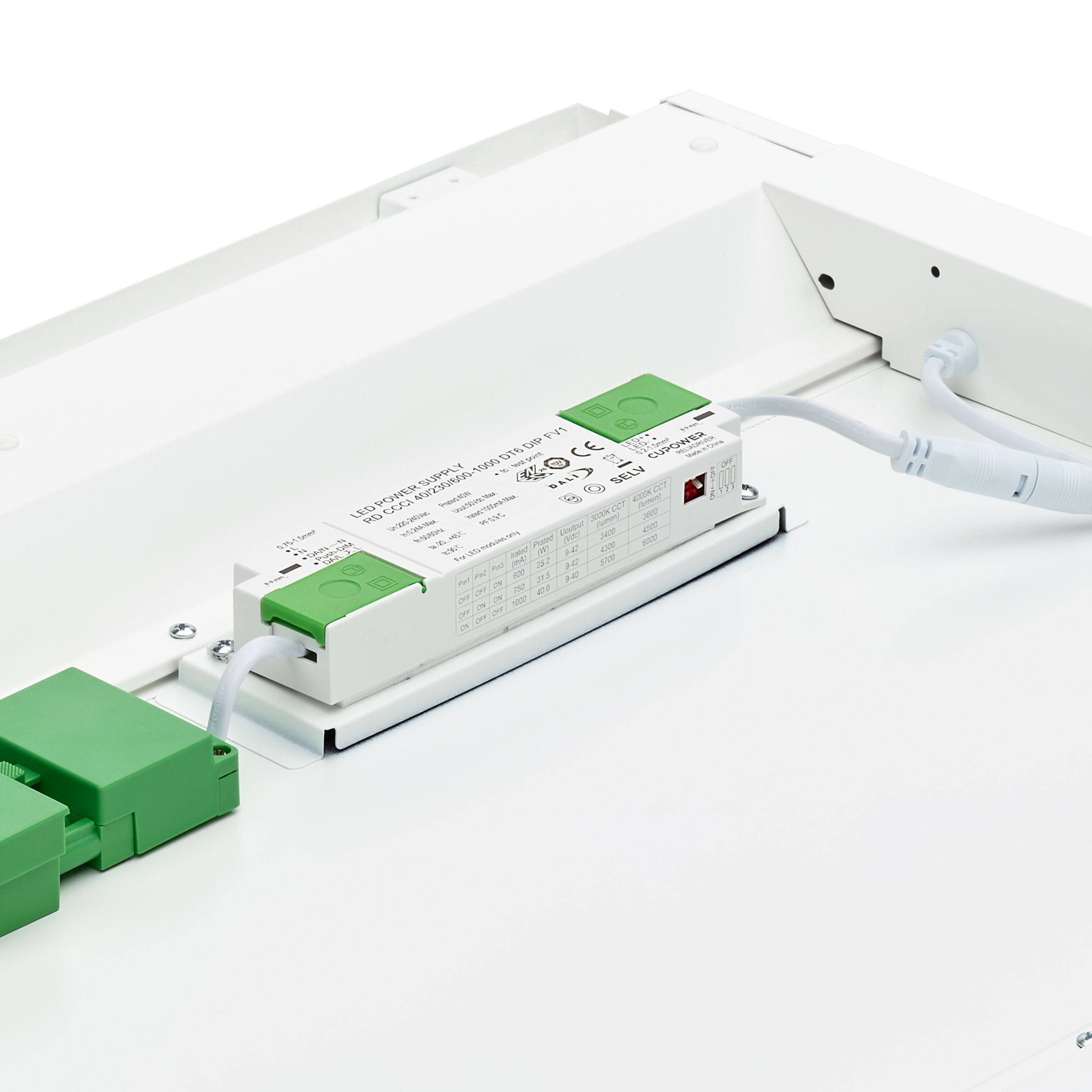

600x600 mm, Visible profile ceiling version, Stål, Hvit RAL 9003, Signal hvit (RAL9003), Strømforsyningsenhet med DALI-grensesnitt, All-in, Multi Lumen, 3600 lm, 4500 lm, 6000 lm, 38.5 W, 23 W, 157 lm/W, 155 lm/W, 4000 K, (0.38.0.38)SDCM3, CRI≥80, UGR19, Bredstrålet, overholder kontorstandarder, Diamant, Polykarbonat, IP20/44 | Fingerbeskyttet, ledningsbeskyttet, sprutsikker, IK03 | 0,35 J armert, Sikkerhetsklasse II, Kabel uten plugg, 5-pols, Push-in-kobling, 4-pols, SC | Sikkerhetskabel
Product details
Technical specifications
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources2
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, structured
Product codes
SAPDJT291
El number3316345
Product number3316345
GTIN/EAN8720169764149
Manufacturer part number911401840987
Vendor material number3316345
Basic information
Package measurements (L x W x H)600 x 600 x 45 mm
Package volume16.2 l
Package weight3.14 kg
Base uniteach
Package units1 / 4 / 24
Usage quantity–
UNSPSC32000000
BrandPHILIPS
Country of OriginCN China
