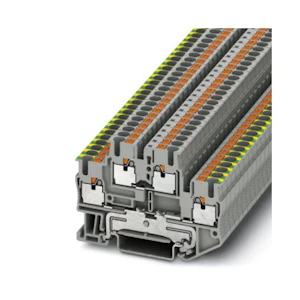

PTTB 2,5-PE/L rekkeklemme innstikk 0,14-2,5
Product number
1264961
PTTB 2,5-PE/L
Etasjeklemme, Tverrsnitt 0,14 mm² - 4 mm², AWG: 26 - 12, Tilkoblingstype: Innstikkstilkobling, Bredde: 5,2 mm, Farge: grå, Monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
PEN function possibleno
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 2.5 mm²
Connectable conductor cross section solid-core0.14 - 4 mm²
Connectable conductor cross section multi-wired0.14 - 4 mm²
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels2
Number of clamp positions per level4
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Closing plate requiredyes
ColourOther
Product codes
SAPGBZ608
El number1264961
Product number1264961
GTIN/EAN4046356419048
Manufacturer part number3210978
Vendor material number3210978
Basic information
Package measurements (L x W x H)68 x 5 x 48 mm
Package volume0.016 l
Package weight0.017 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginCN China
Customs tariff code85369090
