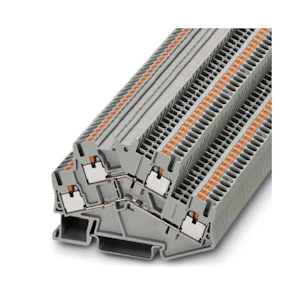

PTTBS 2,5 rekkeklemme innstikk 0,14-2,5
Product number
1264964
PTTBS 2,5
Gjennomgangsrekkeklemme, Tverrsnitt 0,14 mm² - 4 mm², AWG: 26 - 12, Tilkoblingstype: Innstikkstilkobling, Bredde: 5,2 mm, Farge: grå, Monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 2.5 mm²
Connectable conductor cross section solid-core0.14 - 4 mm²
Connectable conductor cross section multi-wired0.14 - 2.5 mm²
Rated current In22 A
Rated voltage500 V
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Explosion-tested version 'Ex e'yes
Closing plate requiredyes
Product codes
SAPGBZ610
El number1264964
Product number1264964
GTIN/EAN4046356330084
Manufacturer part number3209604
Vendor material number3209604
Basic information
Package measurements (L x W x H)78 x 5 x 55 mm
Package volume0.021 l
Package weight0.014 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginCN China
Customs tariff code85369090
