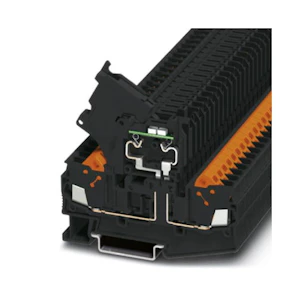

QTC 2,5-HESI (5X20) SIKRINGSKL 0,5-2,5
Product number
1265004
QTC 2,5-HESI (5X20)
Sikringsklemme for montering på NS 35, for G-sikringsinnsatser 5 x 20
Product details
Technical specifications
Type of fuse insertOther
Type of fuse holderSwivelling
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 0.5 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Rated current In6.3 A
Rated voltage500 V
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels1
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Width6.65 mm
Height82.53 mm
Product codes
SAPGBZ584
El number1265004
Product number1265004
GTIN/EAN4046356056137
Manufacturer part number3050293
Vendor material number3050293
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.018 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121408
BrandPHOENIX
Country of OriginCN China
Customs tariff code85369090
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.1466
GWP uniteach
Data source for GWPEandoX
