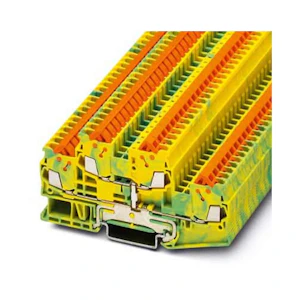

QTTCB 1,5-PE HURTIGKL. 2ETG0,25-1,5 JORD
Product number
1266220
QTTCB 1,5-PE
REKK HURTIG 2 ET 0,25-1,5 JORD
Product details
Technical specifications
PEN function possibleno
Connectable conductor cross section fine-strand without cable end sleeve0.25 - 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 1.5 mm²
Connectable conductor cross section solid-core0.25 - 1.5 mm²
Connectable conductor cross section multi-wired0.25 - 1.5 mm²
Type of electrical connection 1Plug-in connection
Type of electrical connection 2Other
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Closing plate requiredyes
ColourOther
Product codes
SAPGBZ515
El number1266220
Product number1266220
GTIN/EAN4017918932510
Manufacturer part number3205132
Vendor material number3205132
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.02 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginPL Poland
Customs tariff code85369010
