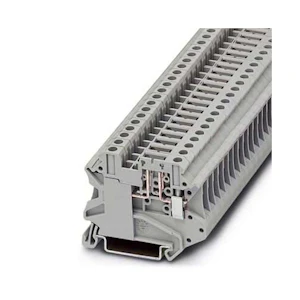

REKKEK SKRU SKILLE 0,14-4 JORD 3046142 PHOENIX CONTACT
Product number
1266025
UT 4-TG
UT 4-TG REKKEK SKRU SKILLE 0,14-4 JORD
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 4 mm²
Connectable conductor cross section solid-core0.14 - 6 mm²
Connectable conductor cross section multi-wired0.14 - 1.5 mm²
Rated current In20 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Internally connected stagesno
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Width6.15 mm
Product codes
SAPGBE417
El number1266025
Product number1266025
GTIN/EAN4017918975579
Manufacturer part number3046142
Vendor material number3046142
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.012 kg
Base uniteach
Package units50
Usage quantity1
UNSPSC39121425
BrandPHOENIX
Country of OriginDE Germany
Customs tariff code85369090
