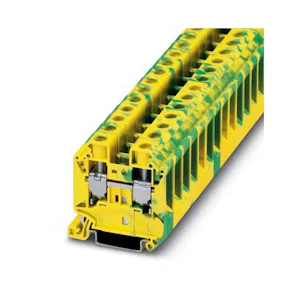

REKKEKL. SKRU 1,5-16 JORD 3044212 PHOENIX CONTACT
Product number
1268239
UT 16-PE
UT 16-PE REKKEKL. SKRU 1,5-35 JORD
Product details
Technical specifications
PEN function possibleno
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve1 - 16 mm²
Connectable conductor cross section solid-core1.5 - 25 mm²
Connectable conductor cross section multi-wired1.5 - 25 mm²
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Width12.15 mm
Height55.5 mm
Depth54.35 mm
Product codes
SAPGBE384
El number1268239
Product number1268239
GTIN/EAN4017918977573
Manufacturer part number3044212
Vendor material number3044212
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.005 l
Package weight0.046 kg
Base uniteach
Package units50
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginTR Turkey
Customs tariff code85369090
