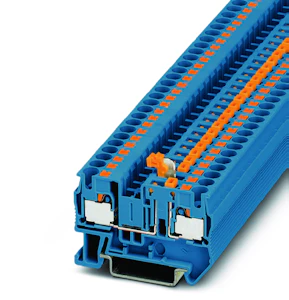

REKL INNST 0,2-6 2 TILKB PT 4-MT BU
Product number
1229826
PT 4-MT BU
Knivskilleklemme, tilkoblingstype: innstikkstilkobling, tverrsnitt0,2 mm² - 6 mm², awg: 24 - 10, nominell strøm: 20 a, nominell spenning: 400 v, lengde: 56 mm, bredde: 6,2 mm, farge: blå, montering: ns 35/7,5, ns 35/15
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 4 mm²
Connectable conductor cross section solid-core0.2 - 6 mm²
Connectable conductor cross section multi-wired0.2 - 4 mm²
Rated current In20 A
Rated voltage500 V
Type of electrical connection 1Other
Type of electrical connection 2Push-in clamp connection
Number of levels1
Number of clamp positions per level2
Internally connected stagesno
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 - 105 °C
Closing plate requiredyes
Product codes
SAPCFD129
El number1229826
Product number1229826
GTIN/EAN4055626231266
Manufacturer part number3211934
Vendor material number3211934
Basic information
Package measurements (L x W x H)5.76 x 1.46 x 1.34 mm
Package volume0.05 l
Package weight0.009 kg
Base uniteach
Package units50
Usage quantity–
UNSPSC32000000
BrandPHOENIX
Country of OriginPL Poland
Customs tariff code85369010
