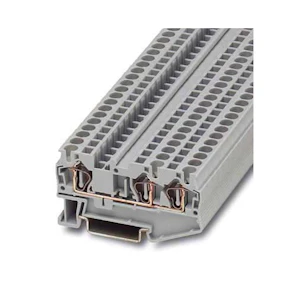

ST 4-TWIN REKKEKL FJÆR 3 TILKB 0,08-4
Product number
1268117
ST 4-TWIN
Gjennomgangsklemme, nominell spenning: 800 V, nominell strøm: 32 A, tilkoblingstype: Fjærkrafttilkobling, antall tilkoblinger: 3, tverrsnitt:0,08 mm² - 6 mm², AWG: 28 - 10, bredde: 6,2 mm, farge: grå, monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 4 mm²
Connectable conductor cross section solid-core0.08 - 4 mm²
Connectable conductor cross section multi-wired0.08 - 4 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level3
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Width6.15 mm
Height71.534246 mm
Depth35.25 mm
Product codes
SAPGCA034
El number1268117
Product number1268117
GTIN/EAN4017918186869
Manufacturer part number3031393
Vendor material number3031393
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.011 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginDE Germany
Customs tariff code85369090
