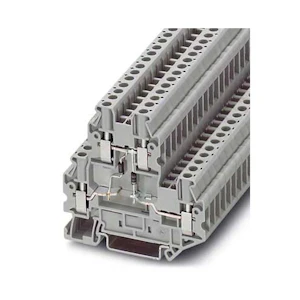

UTTB 2,5-2DIO/O-UL/O-UR 2 ETG 0,14-2,5
Product number
1268255
UTTB 2,5-2DIO/O-UL/O-UR
Byggelementrekkeklemme, med integrert diode, tilkoblingstype: Skrutilkobling, tverrsnitt: 0,14 mm² - 4 mm², AWG: 26 - 12, bredde: 5,2 mm, farge: grå, monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
Explosion-tested version 'Ex e'no
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 2.5 mm²
Connectable conductor cross section solid-core0.14 - 4 mm²
Connectable conductor cross section multi-wired0.14 - 1.5 mm²
Rated current In24 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-60 - 105 °C
Width7.72 mm
Product codes
SAPGBZ986
El number1268255
Product number1268255
GTIN/EAN4017918997212
Manufacturer part number3046689
Vendor material number3046689
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.016 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121432
BrandPHOENIX
Country of OriginPL Poland
Customs tariff code85369090
