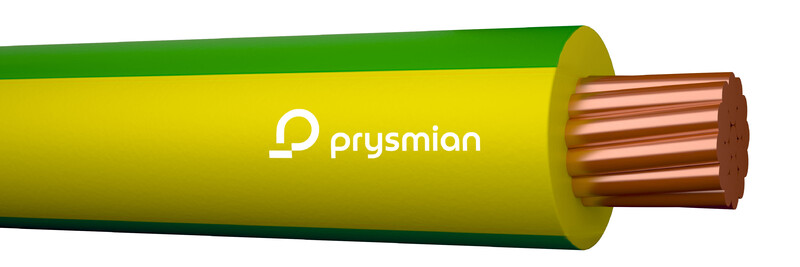

INSTALLATION WIRE-HF MK-HF C-PRo 120 KEVI K9/500
Product number
1024547
IX 750V 120 FR GUL/GRØNN 500M
Ledning for røranlegg i åpen eller skjult utførelse og som koblingsledning. Halogenfri ledning, som anbefales brukt når det er viktig å unngå dannelse av tett røyk og korrosive gasser, i tilfelle en overoppheting eller brann.
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor120 mm²
AWG sizeOther
Diameter conductor14.07 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.153 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Core colourGreen/yellow
Product codes
SAPCEG229
El number1024547
Product number1024547
GTIN/EAN6410004062494
Manufacturer part number0406249
Vendor material number0406249
Basic information
Package measurements (L x W x H)1000 x 18 x 18 mm
Package volume0.324 l
Package weight1.2 kg
Base unitm
Package units1 / 500
Usage quantity–
UNSPSC26121524
BrandPRYSMIAN
Country of OriginFI Finland
Customs tariff code85444931
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A37.68
GWP unitm
Data source for GWPco2data.fi
ID from emition database7000000480
