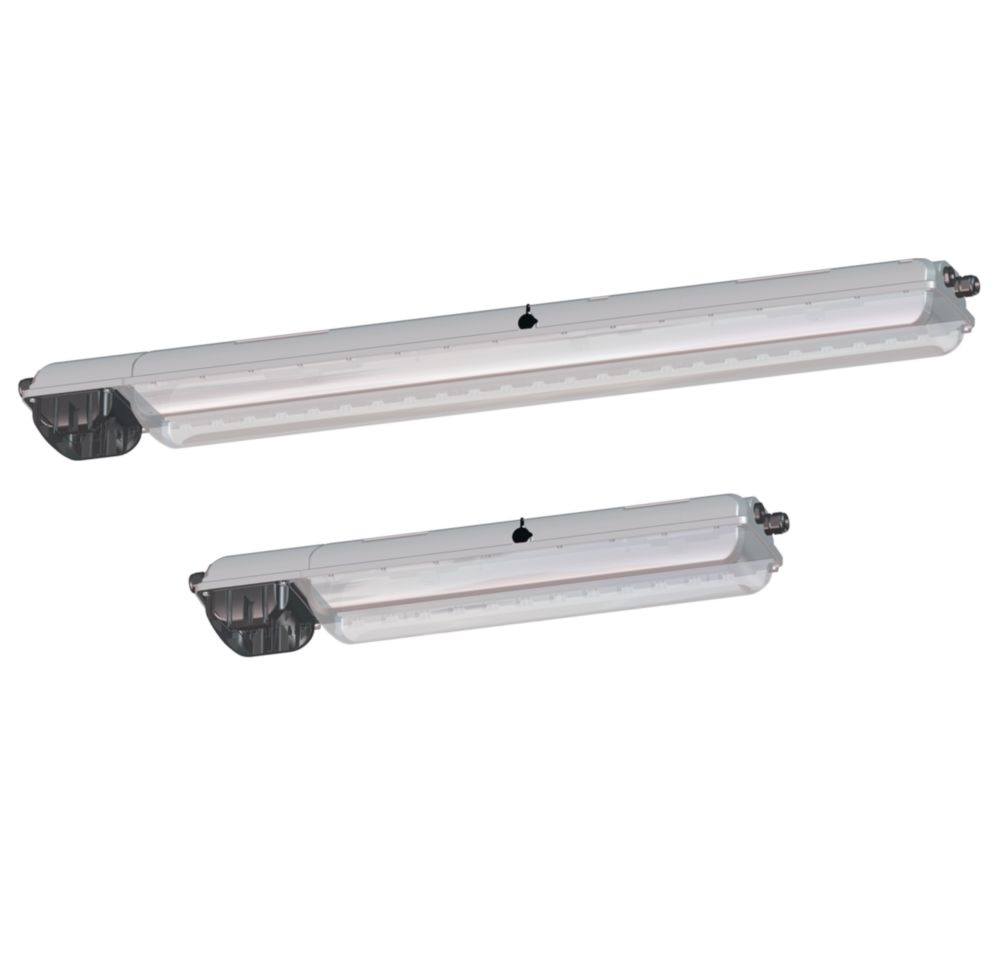

6009/4148 LED Nødlys 45W 5000K
Product number
3330512
Ex LED nødlys armatur 45W
Ex LED nødlysarmatur sone 1, GRP , IP66/IP67
Kapslingsmateriale : Glassfiberarmert Polyester
Skjerm : Polykarbonat
Versjon : Standard
Antall lamper : 1
Effekt : 45W
Lys distribution : 120°x120° med diffuser
Dimensjoner (L x B x H) : 1.467 x 183,5 x 125 mm
Drifts spenning AC : 110,00 - 240,00 V
Bruksområde (Soner) : 1 , 2 , 21 , 22
Gass eksplosjons beskyttelse : II 2 G Ex db eb ib mb op is IIC T4 Gb
Støv eksplosjons beskyttelse : II 2 D Ex tb op is IIIC T100 °C Db
Min. omgivelses temperatur : -30 °C
Max. omgivelses temperatur : +50 °C
Gjennomkobling : med 6 ledere 2.5 mm2
Innstallert terminal tilkobling : PE + N + L1 + L2 + L3 + L´
Max. tilkobling èn leder : 6,00 mm2
Max. tilkobling flertrådet : 4,00 mm2
Batteri kapasitet : 7,0 Ah
Batteri Versjon : NiCd Batteri, Gass-tett
Nød Lys drift : Kontinuerlige Lys eller Stand-by Lys
Drifts tid : 1.5t / 3t i nødlysdrift
LED levetid : L90B50 : 100.000 h
Batteri Drifts spenning : 6 V
Selvtest funksjon : med (standard)
Borrede hull : 4 x M25
Tilbehør : Uten
Kabel innføringer : Kan bestilles som Tilbehør
Stopp plugg : Kan bestilles som Tilbehør
Product details
Technical specifications
Mounting methodWall-/ceiling mounting
Adjustableno
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderNone
Housing materialPlastic
Material coverPlastic, transparent
Voltage typeAC
Type of control gearLED operating device voltage-controlled
With control gearyes
Light distributorDiffuser lens/optic/panel
Beam angle<gt/> 80° - Extreme wide beam
Degree of protection (IP)IP66
Degree of protection (NEMA)Other
Product codes
SAPDLG164
El number3330512
Product number3330512
GTIN/EAN4046827180460
Manufacturer part number272236
Vendor material number3330512
Basic information
Package measurements (L x W x H)1467 x 184 x 125 mm
Package volume33.741 l
Package weight9.2 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandR. STAHL SCANDINAVIA
Country of OriginDE Germany
