6036/31201-42500-111050-850 0000ST00
Product number
3368179

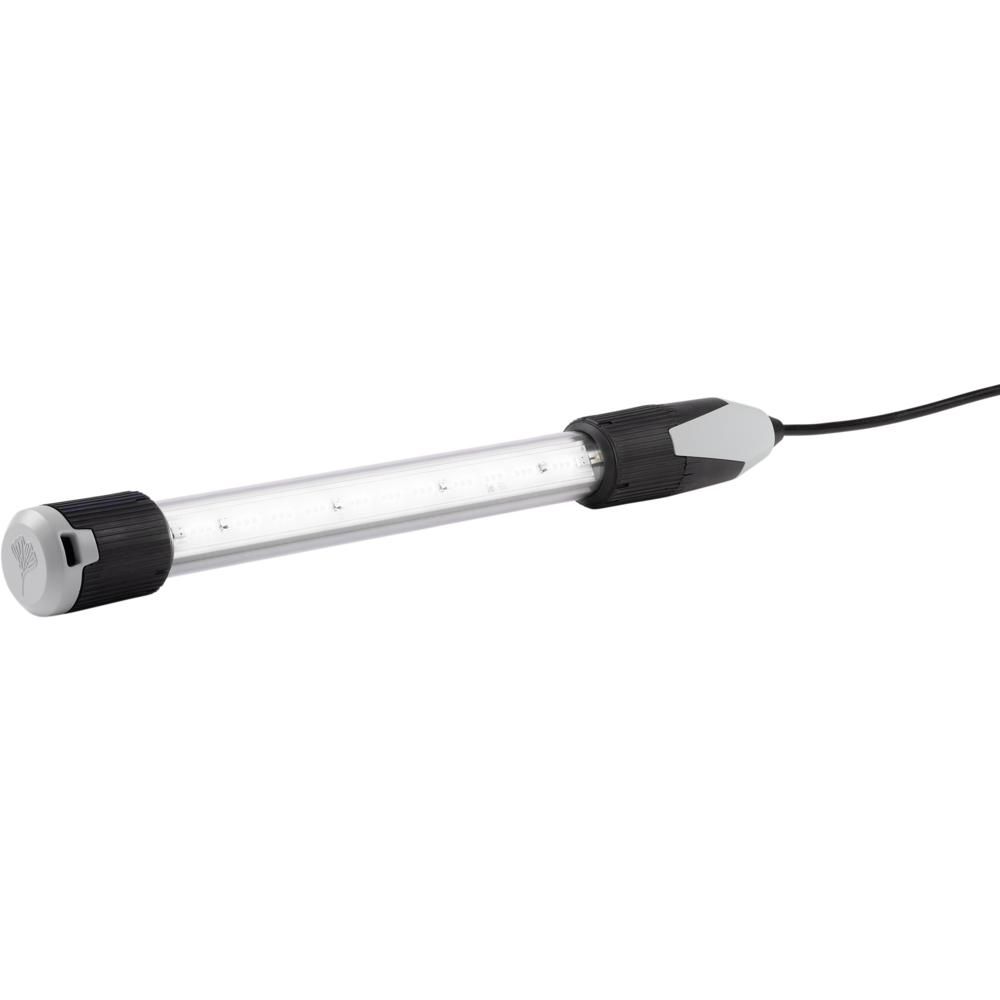

6036/3 Rørformet lysarmatur LED 24W size 2
Ex LED-lysrør sone 1, IP66/68
Type : 6036/31201-42500-111050-850 -0000ST00
Sertifis. o. godkjenninger : ATEX
IECEx
Bruksområde (soner) : 1, 2, 21, 22
Driftsmerkespenning AC : 100-277 V
Frekvensområde : 50-60 Hz
Driftsmerkespenning DC : 190-250 V
Nominell strøm : 110 mA
Styregrensesnitt : uten
Sensorer : uten
Lysfordeling : med deflektor 140°
Lysfarge : 850 - 5000 K CRI80
Fargetemperatur : 5000 K
Lampelysstrøm : 3050,00 lm
Lyseffektivitet : 127 lm/W
Nominell effekt : 24 W
Besk.klasse IP (IEC 60598) : IP66 / IP68 (10 m / 60 min)
Lengde : 850 mm
Diameter : 55,9 mm
Kabellengde : 5 m
Type tilkoblingsledning : H07RN8-F 2x1,5 mm2
Kabinettmateriale : Polykarbonat
Rørmateriale : Polykarbonat
Gasseksplosjonsbeskyttelse : II 2 G Ex db op is IIC T4 Gb
Støveksplosjonsbeskyttelse : II 2 D Ex tb IIIC T100 °C Db
Omgivelsestemperatur °C : -55 - 70 °C
Omgivelsestemperatur merknad : slå på over -40 °C
Product details
Technical specifications
Mounting methodWall-/ceiling mounting
Adjustableno
Lamp typeLED not exchangeable
With light sourceyes
Housing materialPlastic
Voltage typeAC/DC
Nominal voltage100 - 277 V
Nominal current110 - 110 mA
Type of control gearLED operating device voltage-controlled
With control gearyes
Exchangeable control gearno
Light distributorDiffuser lens/optic/panel
Beam angle<gt/> 80° - Extreme wide beam
Degree of protection (IP)IP66
Impact strengthIK10
Product codes
SAPDLG168
El number3368179
Product number3368179
GTIN/EAN4046827170911
Manufacturer part number316969
Vendor material number3368179
Basic information
Package measurements (L x W x H)850 x 56 x 56 mm
Package volume2.666 l
Package weight2.14 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandR. STAHL SCANDINAVIA
Country of OriginDE Germany
