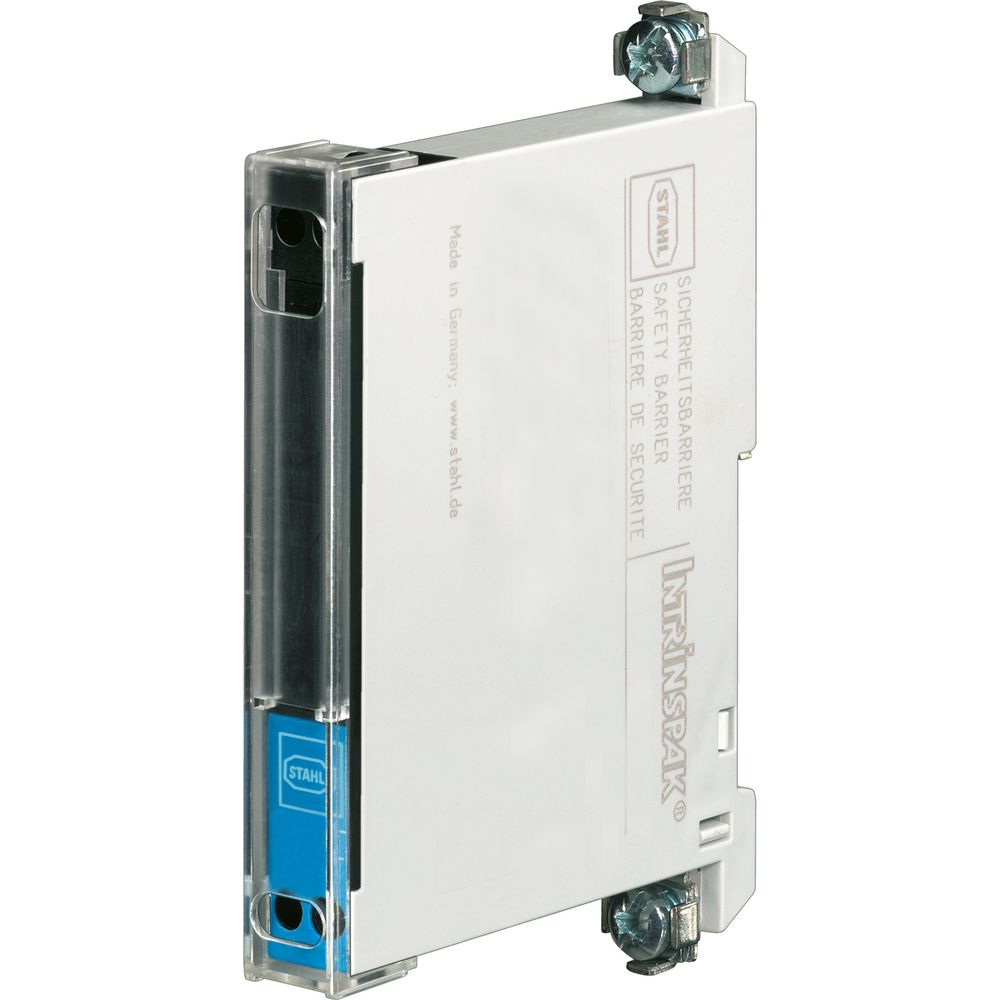

En-kanals sikkerhetsbarriere 9001/02-175-100-101
Product number
4548006
Enkeltkanals sikkerhetsbarrierer 9001/02-175-100-101
Enkeltkanals sikkerhetsbarrierer -
Type : 9001/02-175-100-101
Maks. spenning Uo : 17,5 V
Maks. strøm Io : 100 mA
Maks. effekt Po : 437,5 mW
Antall kanaler : 1
Potensial : vekslende
Bruksområde (soner) : 2
Gasseksplosjonsbeskyttelse : II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
Støveksplosjonsbeskyttelse : II (1) D [Ex ia Da] IIIC
Nominell spenning : ±12,00 V AC+DC
Maksimal utgangsstrøm Imax : 53 mA
For mer informasjon, se : r-stahl.com WebCode 9001A
Product details
Technical specifications
Type of power supplyPassive
Rated supply voltage AC0 - 0 V
Rated operating frequency0 - 0 Hz
Rated supply voltage DC0 - 0 V
Number of inputs according to NAMUR0
Number of inputs, potential-free0
Switching voltage0 V
Switching current0 A
Switching power0 VA
Switching frequency0 Hz
Number of channels1
Number of output circuits relays normally open contact0
Number of output circuits relays change-over contact0
Number of output circuits transistor potential-free0
Number of output circuits transistor pnp0
Product codes
SAPDLV606
El number4548006
Product number4548006
GTIN/EAN4046827024801
Manufacturer part number158301
Vendor material number4548006
Basic information
Package measurements (L x W x H)103 x 72 x 12 mm
Package volume0.089 l
Package weight0.11 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandR. STAHL SCANDINAVIA
Country of OriginSK Slovakia
