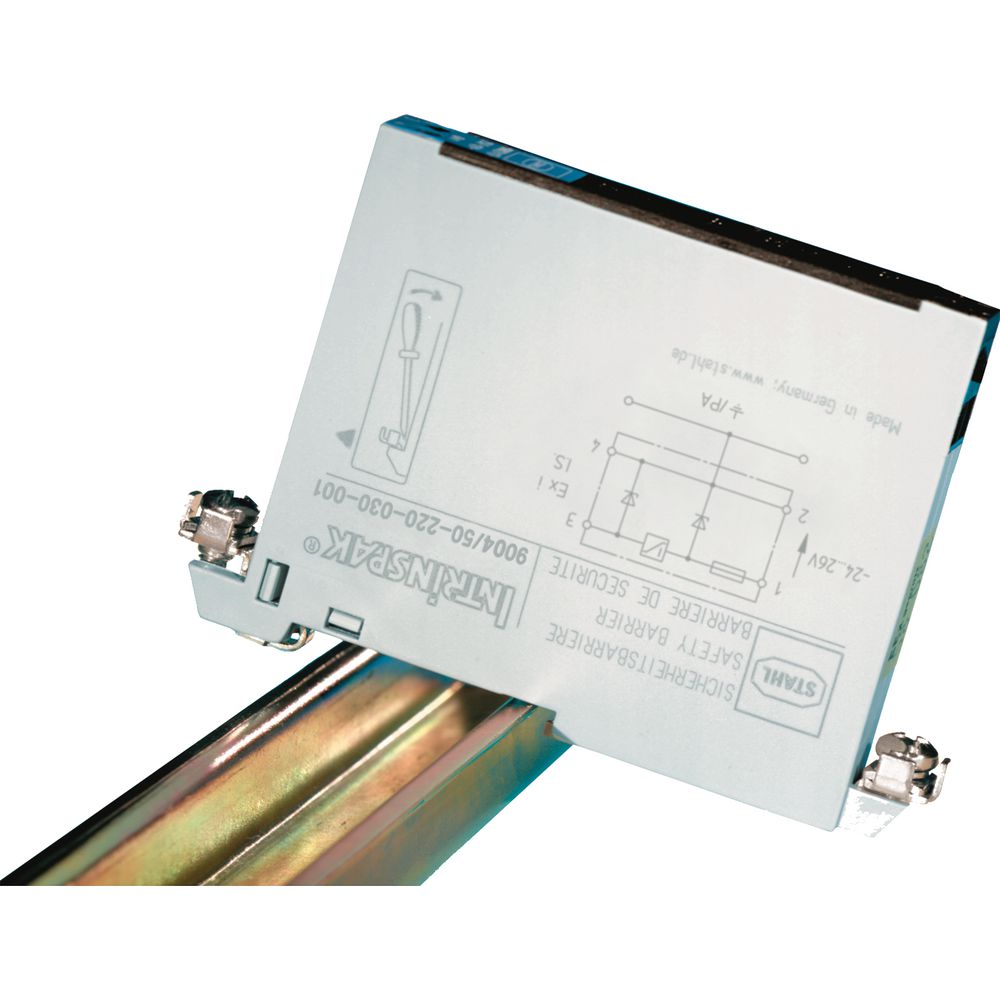

En-kanals sikkerhetsbarriere 9004/51-206-085-001
Product number
4548045
Dobbeltsporede sikkerhetsbarrierer 9004/51-206-085-001
Enkeltkanals sikkerhetsbarrierer med elektrisk strømbegrensning
Type : 9004/51-206-085-001
Maks. spenning Uo : 20,6 V
Maks. strøm Io : 85 mA
Maks. effekt Po : 1,751 mW
Antall kanaler : 1
Potensial : Positiv med spenningsbegrensning
Bruksområde (soner) : 2
Gasseksplosjonsbeskyttelse : II 3 (2) G Ex ec [ib Gb] IIB T4 Gc
Støveksplosjonsbeskyttelse : II (2) D [Ex ib Db] IIIC
Nominell spenning : 23,00 ... 27,00 V DC
Maksimal utgangsstrøm Imax : 70 mA
For mer informasjon, se : r-stahl.com WebCode 9004A
Product details
Technical specifications
Type of power supplyActive
Rated supply voltage AC0 - 0 V
Rated operating frequency0 - 0 Hz
Rated supply voltage DC23 - 27 V
Number of inputs according to NAMUR0
Number of inputs, potential-free0
Switching voltage20.6 V
Switching current0.07 A
Switching power1.751 VA
Switching frequency0 Hz
Number of channels1
Number of output circuits relays normally open contact0
Number of output circuits relays change-over contact0
Number of output circuits transistor potential-free0
Number of output circuits transistor pnp0
Product codes
SAPDLV645
El number4548045
Product number4548045
GTIN/EAN4046827027086
Manufacturer part number159094
Vendor material number4548045
Basic information
Package measurements (L x W x H)103 x 72 x 12 mm
Package volume0.089 l
Package weight0.11 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandR. STAHL SCANDINAVIA
Country of OriginSK Slovakia
