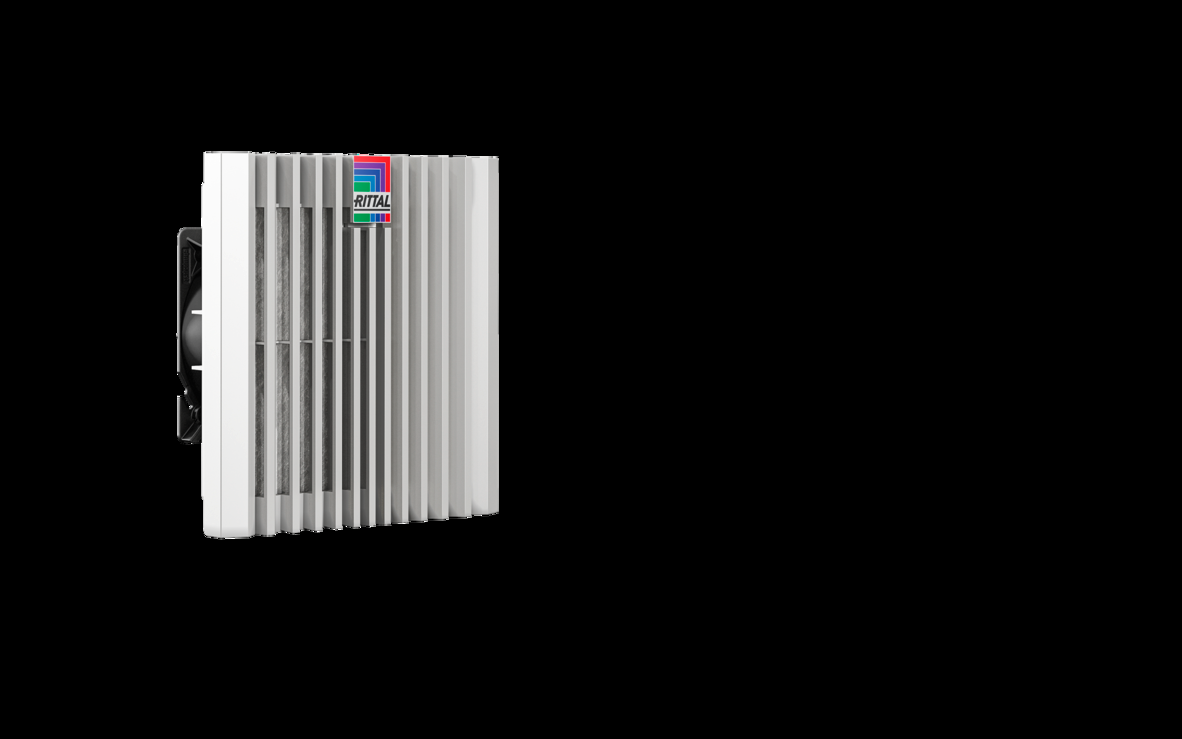

FAN AND FILTER UNIT SK FAN AND FILTER UNIT
Product number
2467547
SK Blue e+ vifte- og filterenhet, 110/125 m³/t, 230 V, 1~, 50 Hz/60 Hz, RAL 7035
Komplett vifteenhet for verktøyfri montering på overflater. Luftgjennomstrømning fra 20 - 1160 m³/t, standard beskyttelseskategori IP 54.
Product details
Technical specifications
Number of fans1
Operating voltage AC 50 Hz230 - 230 V
Operating voltage AC 60 Hz230 - 230 V
Voltage typeAC
Suitable for wall built-inno
Built as slide-in ventilatorno
Air circulatoryes
Roof ventilatorno
With filteryes
With protective coveryes
Volume flow, freeblowing115 m³/h
Rated power16 W
EMC-versionno
Degree of protection (IP)IP54
Degree of protection (NEMA)12
Product codes
SAPDHI740
El number2467547
Product number2467547
GTIN/EAN4028177998216
Manufacturer part number3239700
Vendor material number3239700
Basic information
Package measurements (L x W x H)240 x 240 x 150 mm
Package volume8.64 l
Package weight1.1 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121311
BrandRITTAL
Country of OriginCN China
