RGM63/4 AISI316 4X0+4-16,5MM KABELGJ.FØRING
Product number
1201656

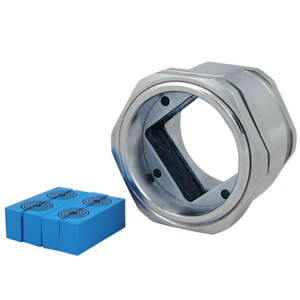

RG M63/4 AISI 316 pakknippel<br>For 4 kabler Ø3,5-16,5mm
For IP-66/67 Leveres komplett med pakkmoduler Materiale - syrefast stål AISI 316
Product details
Technical specifications
Thread typeMetric
Nominal thread size metric/PG63
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length10 mm
Wrench width0 mm
Hexagon angular dimension64 mm
Suitable for cable diameter3.5 ... 16.5 mm
MaterialMetal
Material qualityStainless steel others
Surface protectionUntreated
Halogen freetrue
Glass-fibre reinforcedfalse
Degree of protection (IP)IP67
Shock resistantfalse
Product codes
SAPGAZ124
PLC1201656
STK1201656
GTIN/EAN7340016903944
Manufacturer part numberRG00063040021
Vendor material number1201656
Basic information
Package measurements (L x W x H)51 x 0 x 74 mm
Package volume0 l
Package weight0.5 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121312
BrandROXTEC
