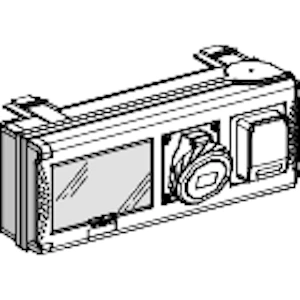

BOKS M/2XUTE 2X16+PE KSB32CP11D
Product number
1219815
Boks M/2Xute 2X16+Pe
BOKS M/2XUTE 2X16+PE N11
Product details
Technical specifications
Number of conductors (without earthing)4
Number of poles5
Rated current AC 50 Hz32 A
Rated voltage AC 50 Hz230 - 690 V
Phase selectionno
With lockingno
Branch off typeSocket outlet
Number of CEE socket outlets (IEC 60309)0
Number of NEMA socket outlets0
Number of other socket outlets2
Type of socket outletsSocket outlet with protective contact CEE 7/3 (type F) 16 A
ProtectionNone
ColourWhite
RAL-number9001
Degree of protection (IP)IP55
Product codes
SAPGBD908
El number1219815
Product number1219815
GTIN/EAN3606480005992
Manufacturer part numberKSB32CP11D
Vendor material numberKSB32CP11D
Basic information
Package measurements (L x W x H)176 x 435 x 190 mm
Package volume14.546 l
Package weight1.49 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39111811
BrandSCHNEIDER ELECTRIC
Country of OriginIT Italy
