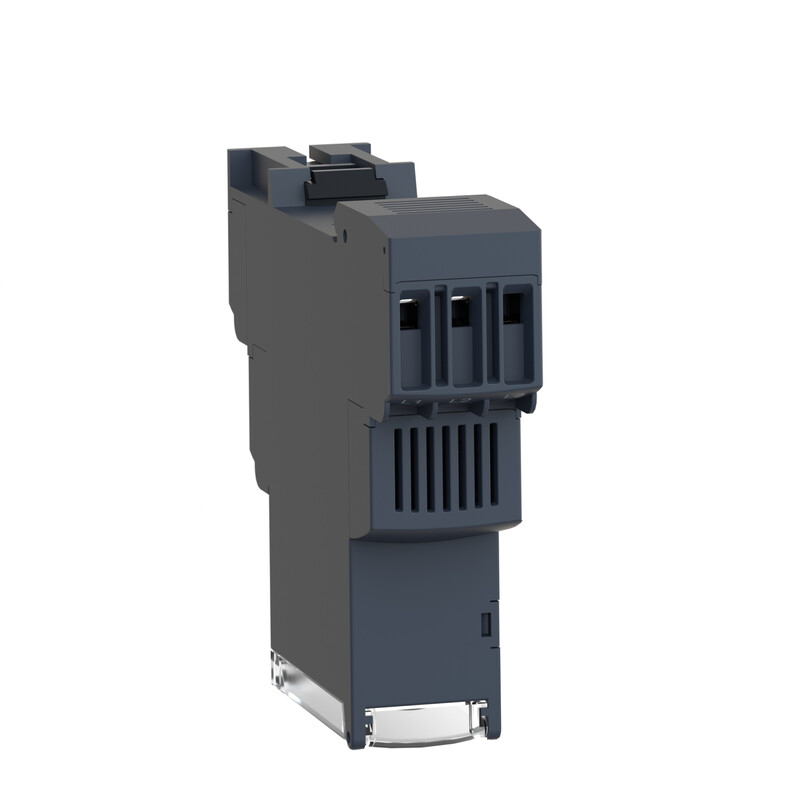

Control relay for voltage 3x230VAC 2C/O 8A
Product number
4172074
Three-Phase Voltage control relay 200…240Vac, 2 C/O
Three-Phase Voltage control relay 200…240Vac, 2 C/O. range of product: Zelio Control - product or component type: modular measurement and control relays - relay type: control relay - network number of phases: 3 phases - relay name: RM22TR - relay monitored parameters: overvoltage and undervoltage detection, phase failure detection, phase sequence - switching capacity in VA: 2000 VA. Benefits: .. Applications: ..
Product details
Technical specifications
Type of electric connectionScrew connection
With detachable clampsno
Phase sequence monitoringyes
Phase failure detectionyes
Function under voltage detectionyes
Function overvoltage detectionyes
Phase imbalance monitoringno
Voltage measuring range160 - 288 V
Min. adjustable delay-on energization time0.1 s
Max. permitted delay-on energization time30 s
Min. adjustable off-delay time0.1 s
Max. permitted off-delay time30 s
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact2
Product codes
SAPCCJ521
El number4172074
Product number4172074
GTIN/EAN3606480792182
Manufacturer part numberRM22TR31
Vendor material numberRM22TR31
Basic information
Package measurements (L x W x H)26 x 95 x 82 mm
Package volume0.203 l
Package weight0.101 kg
Base uniteach
Package units1 / 40
Usage quantity–
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
Country of OriginID Indonesia
Customs tariff code85364900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A32.1319
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
