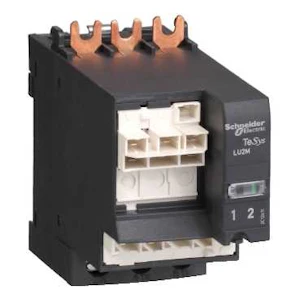

DREIERETN. V. 32A 24V AC LU2MB0B
Product number
4170122
Dreieretningv modul 32A 24VAC
Tesys U - dreieretningsvendere. Tesys U er en kompaktstarter etter "plug-and-play"-prinsippet: Alle typer beskyttelse tilgjengelig uten kabling. Dreieretningsvenderne som starter med LU2B er effektbaser med dreieretningsvender ferdig montert.
Product details
Technical specifications
FunctionReversing contactor
Suitable for rail mountingyes
Rated control supply voltage AC 50 Hz24 - 24 V
Rated control supply voltage AC 60 Hz24 - 24 V
Voltage type for actuatingAC
Type of electrical connection of main circuitScrew connection
Voltage type (operating voltage)AC
Operating voltage AC 50 Hz690 - 690 V
Operating voltage AC 60 Hz690 - 690 V
Rated operation current Ie at AC-3, 400 V32 A
Rated operation power at AC-3, 400 V15 kW
Rated operation power NEMA14.9 kW
Type of electrical connection for auxiliary- and control current circuitScrew connection
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Product codes
SAPGAO108
El number4170122
Product number4170122
GTIN/EAN3389110363784
Manufacturer part numberLU2MB0B
Vendor material numberLU2MB0B
Basic information
Package measurements (L x W x H)130 x 95 x 55 mm
Package volume0.679 l
Package weight0.378 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85364100
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A32.9402
GWP uniteach
Data source for GWPEPD
