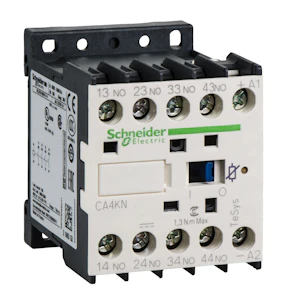

HJELPEKONTAKTOR 3SL. + 1BR. CA4KN31BW3
Product number
4176838
Hjelperelé 3NO+1NC 24VDC Lavf
Mini-hjelpekontaktorer - Tesys K.
Product details
Technical specifications
Rated control supply voltage DC24 - 24 V
Voltage type for actuatingDC
Rated operation current10 A
Rated operation current Ie, 400 V10 A
Mounting methodDIN-rail/screw
With LED indicationno
Suitable for manual operationno
Interfaceno
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as normally closed contact, delayed switching0
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Operating voltage AC 50 Hz690 - 690 V
Operating voltage AC 60 Hz690 - 690 V
Product codes
SAPGBI490
El number4176838
Product number4176838
GTIN/EAN3389110428605
Manufacturer part numberCA4KN31BW3
Vendor material numberCA4KN31BW3
Basic information
Package measurements (L x W x H)48 x 62 x 66 mm
Package volume0.196 l
Package weight0.221 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85364100
