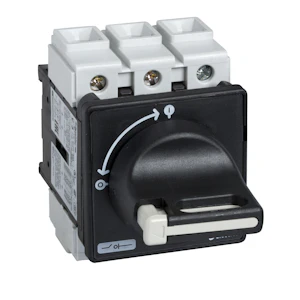

HOVEDBRYTER LÅSBAR 12A VBF02
Product number
1475409
Hovedbryter Låsbar 12A
Fra 12 til 175A. Både til bunn- og frontmontasje. Standard 3-polet, men kompletteres lett med ekstra hovedpol, hjelpekont., nulleder- eller jordklemmer. Kapsl. til Mini-Vario (12 og 20A): IP55. For andre Vario-brytere: IP65....
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu12 A
Rated permanent current at AC-23, 400 V8.1 A
Rated permanent current at AC-21, 400 V12 A
Rated operation power at AC-3, 400 V3 kW
Rated short-time withstand current lcw0.3 kA
Rated operation power at AC-23, 400 V4 kW
Conditioned rated short-circuit current Iq10 kA
Product codes
SAPGBH583
El number1475409
Product number1475409
GTIN/EAN3389110200980
Manufacturer part numberVBF02
Vendor material numberVBF02
Basic information
Package measurements (L x W x H)120 x 84 x 80 mm
Package volume0.806 l
Package weight0.219 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121601
BrandSCHNEIDER ELECTRIC
Country of OriginCZ Czech Republic
Customs tariff code85365000
