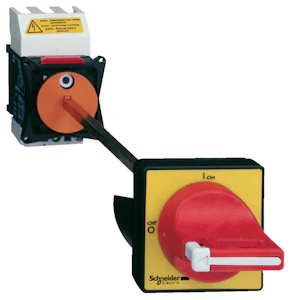

HOVEDBRYTER RØD+AKSEL 32A
Product number
1475400
Hovedbryter rød+aksel 32A
Hovedbryter rød+aksel 32A. Label: TeSys Vario, Mini-Vario - serie: TeSys - kontrolltype: dreiehåndtak - type montering av dreiehåndtak: forlenget - farge på grep: Rød - farge på frontplate til grep: Gul - produkt navn: TeSys VARIO - kortnavn utstyr: VCCF - egnet for isolasjon: ja - Produkt eller komponent type: nødstoppbryter skille - prestasjonsnivå: høy ytelse - Antall poler: 3P - kontakttype og sammensetning: 3 NO - nettverkstype: DC,AC"
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchno
Version as safety switchno
Version as emergency stop installationyes
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage0 - 690 V
Rated permanent current Iu32 A
Rated permanent current at AC-23, 400 V21.8 A
Rated permanent current at AC-21, 400 V32 A
Rated operation power at AC-3, 400 V7.5 kW
Rated short-time withstand current lcw0.384 kA
Rated operation power at AC-23, 400 V11 kW
Conditioned rated short-circuit current Iq10 kA
Product codes
SAPCNI765
El number1475400
Product number1475400
GTIN/EAN3389110449334
Manufacturer part numberVCCF1
Vendor material numberVCCF1
Basic information
Package measurements (L x W x H)75 x 90 x 250 mm
Package volume1.688 l
Package weight0.341 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39122233
BrandSCHNEIDER ELECTRIC
Country of OriginCZ Czech Republic
Customs tariff code85365000
