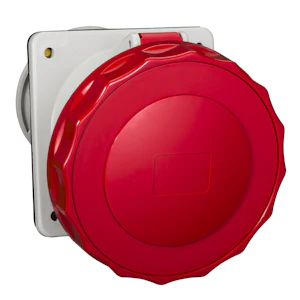

INF.UTTAK VINKLET 125A 3P+J 81294
Product number
1501622
PratiKa uttak stor veggblokk - 125 A - 3P + E - 380...415 V AC - IP67
PK industrikontakter inneholder plugger,skjøtekontakter og tilpassede ut- og inntak for innfelling. Passer perfekt til Kaedra kapslinger. Kontaktene leveres i 16.32.63 og 125A varianter, IP 44 og IP 67. Nominell spenning 2308415V (opptil 690V på forespørsel). mekanisk styrke ihht. EN 50102:IK08. Motstand mot flammer og ekstreme temperaturer ihht. IEC 60695-2-1 850ºC
Product details
Technical specifications
IEC-amperage125 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage380 - 415 V
Rated frequency50 - 60 Hz
Number of poles4
Clock hour position6 h
Identification colourRed
RAL-number7035
Degree of protection (IP)IP67
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Military modelno
Flange size vertical114 mm
Drill hole distance vertical0 mm
Product codes
SAPGAD912
El number1501622
Product number1501622
GTIN/EAN3303430812944
Manufacturer part number81294
Vendor material number81294
Basic information
Package measurements (L x W x H)110 x 166 x 114 mm
Package volume2.082 l
Package weight0.118 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121413
BrandSCHNEIDER ELECTRIC
Country of OriginIT Italy
Customs tariff code85366900
