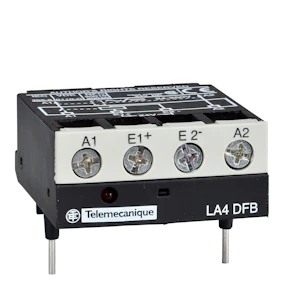

INTERFACEMODUL,FOR D09-D32/I18 LA4DFB
Product number
4175623
Interfacemodul D09-D32/I18
Tilbehør til Tesys D kontaktorer (diverse dempeledd, hjelpeblokker, tidsmoduler, spoler, laskesett etc.)
Product details
Technical specifications
Type of set-upDirect attachment
Rated control supply voltage AC 50 Hz0 - 0 V
Rated control supply voltage AC 60 Hz0 - 0 V
Rated control supply voltage DC24 - 24 V
Voltage type for actuatingDC
With integrated suppressorno
Voltage type (operating voltage)DC
Operating voltage AC 50 Hz24 - 250 V
Operating voltage AC 60 Hz24 - 250 V
Rated operation current Ie at DC-13, 230 V0 A
Rated operation current Ie at AC-15, 230 V0 A
Height12 mm
Product codes
SAPGAH307
El number4175623
Product number4175623
GTIN/EAN3389110236378
Manufacturer part numberLA4DFB
Vendor material numberLA4DFB
Basic information
Package measurements (L x W x H)50 x 50 x 40 mm
Package volume0.1 l
Package weight0.049 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginTN Tunisia
Customs tariff code85364900
