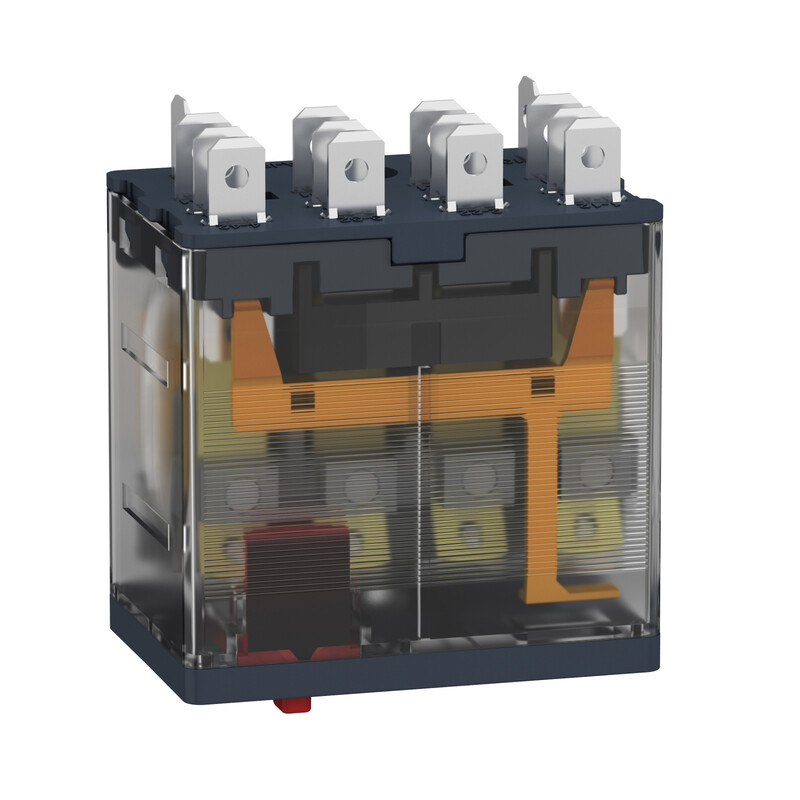

Roll over image to zoom in
PLUG-IN RELAY RPM 120VAC 4C/O 15A LED
Product number
4169072
Power plug-in relay, Zelio RPM, 4 C/O, 120 V AC, 15A, with LED
Power plug-in relay, Zelio RPM, 4 C/O, 120 V AC, 15A, with LED. range of product: Zelio Relay - series name: Power - product or component type: plug-in relay - device short name: RPM - contacts type and composition: 4 C/O - status LED: with - control type: lockable test button - utilisation coefficient: 20 %. Benefits: A new offer image!. Due to its compact size, Zelio can be used to multiply the functions in electrical enclosures. Simplicity, no adjustment required for standard applications. Ease of integration in an existing device.... Applications: Market target, Industrial machines, Machines and building equipement, HVACApplications, Simple hard-wired logic control system cycles, Extra feature for industrial PLCs..
Product details
Technical specifications
Type of electric connectionPlug-in connection
Complete with socketno
With detachable clampsyes
With LED indicationyes
Rated control supply voltage AC 50 Hz120 - 120 V
Rated control supply voltage AC 60 Hz120 - 120 V
Voltage type for actuatingAC
Drive, polarizationPolarity free
Drive, switching attitudeMono stable
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact4
Type of switch contactOther
With forced-guided contactsyes
Material of contact insertOther
Product codes
SAPADV874
El number4169072
Product number4169072
GTIN/EAN3389119402248
Manufacturer part numberRPM42F7
Vendor material numberRPM42F7
Basic information
Package measurements (L x W x H)47 x 40 x 27 mm
Package volume0.051 l
Package weight0.072 kg
Base uniteach
Package units10 / 40
Usage quantity–
UNSPSC39122325
BrandSCHNEIDER ELECTRIC
Country of OriginCN China
Customs tariff code85364900
Sustainability info
Documents (1)
Environmental declaration
