PLUGG TP 2 RØD 1003003
Product number
1380430

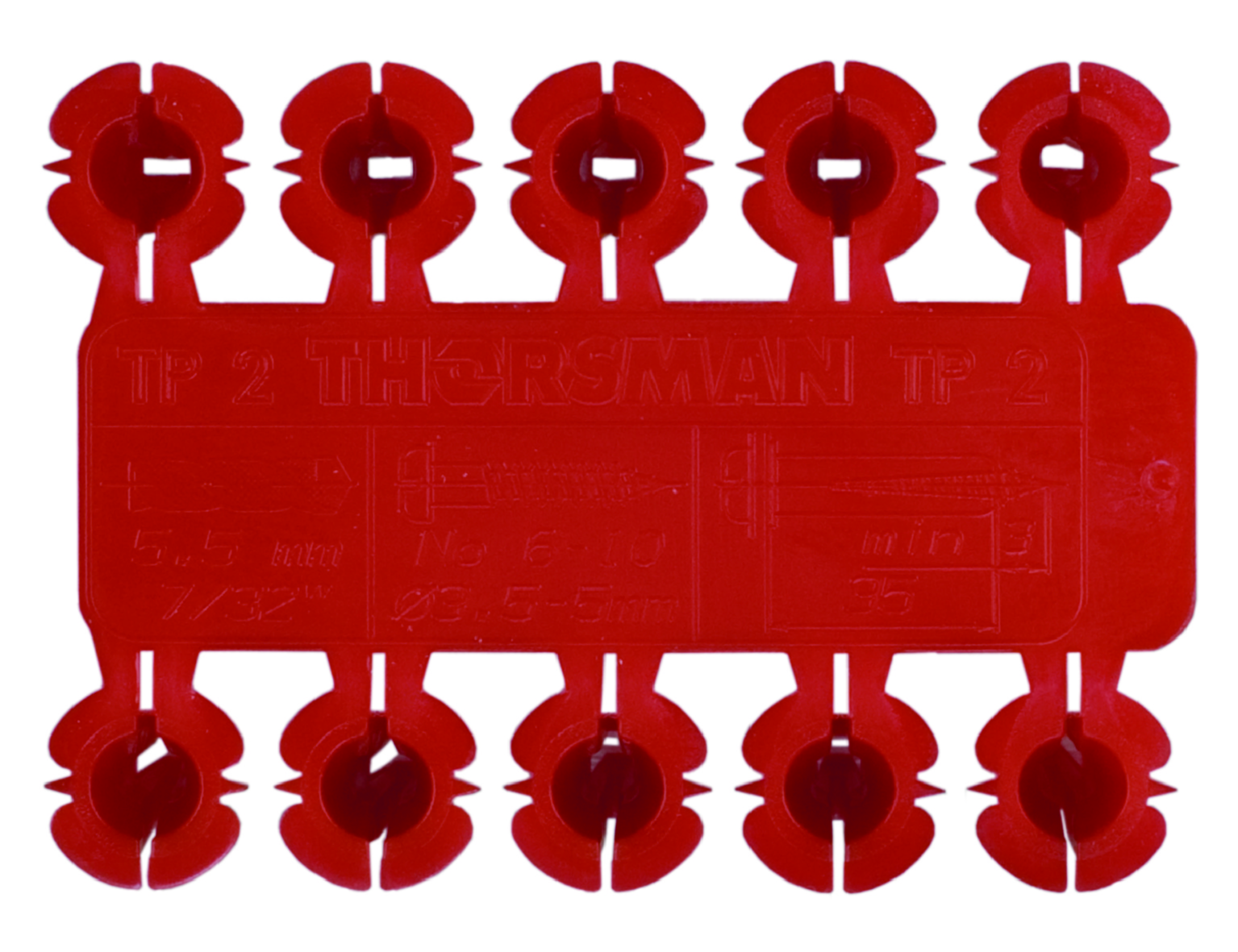

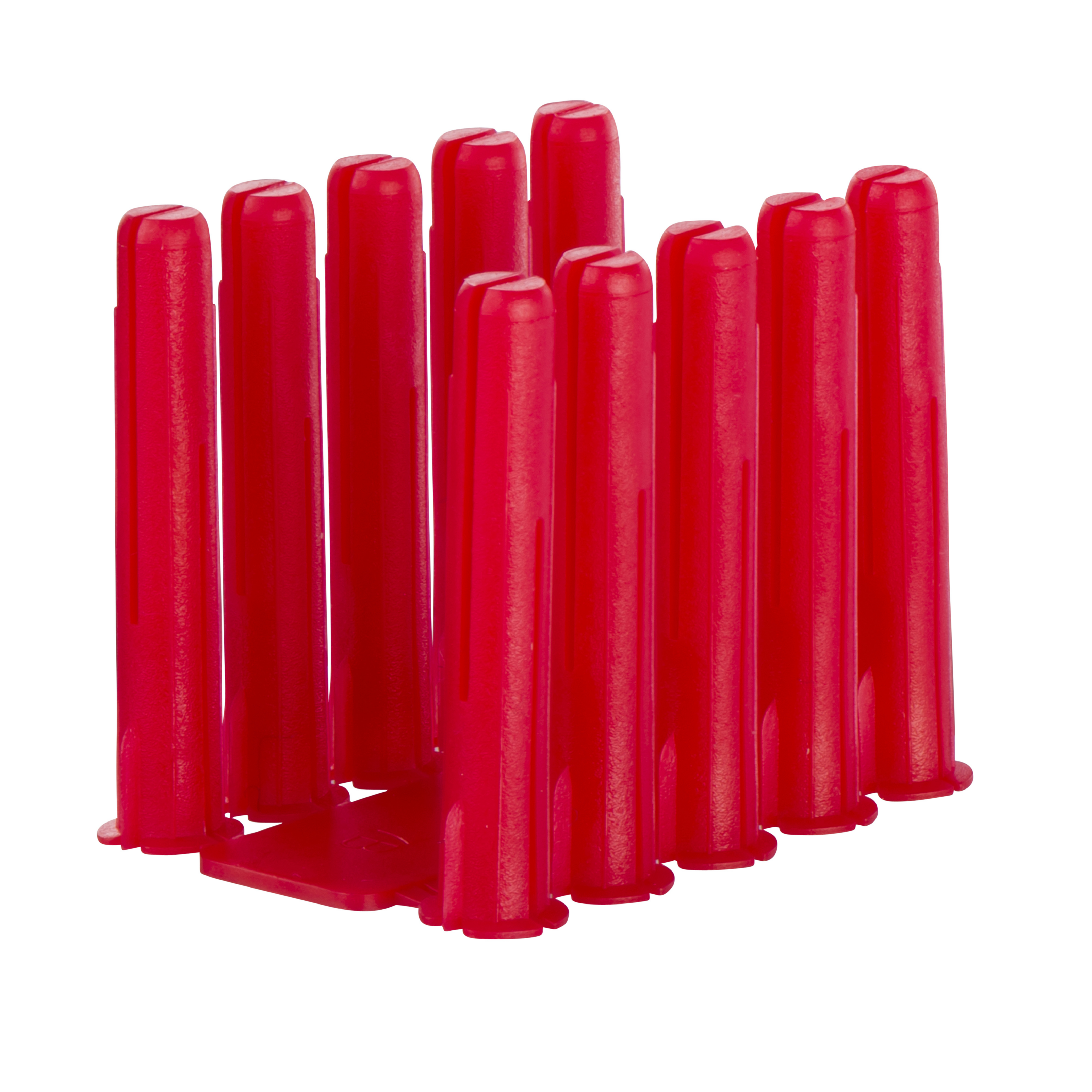

Thorsman TP2 plast plugg, pakke av 100stk (RØD)

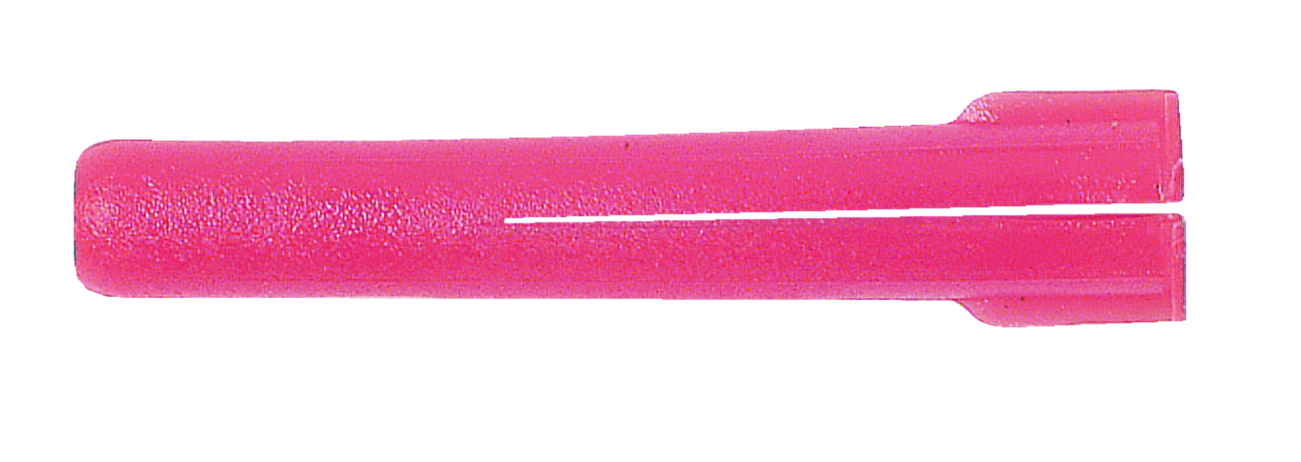

TP - Plastplugg i polyeten for skruemontasje.
For de fleste montasjer der skjærkraften dominerer.
Anbefales ikke for montasje i tak - bruk da f.eks TMA.
Brukes i betong, natursten, lettbetong, LECA, hulltegl, tegl og plater.
For at belastningsverdiene som er målt skal være reelle, må skruen gjennom pluggen + minimum 1 gjenge.
Product details
Technical specifications
ModelUniversal anchor plug
Length35 mm
Drill hole diameter5.5 mm
Drill hole depth40 mm
Suitable for screw diameter3.5 - 5 mm
Suitable for coach screwno
With screwno
MaterialPlastic
Material qualityPolyethylene (PE)
ColourRed
With edgeno
Suitable for cellular concreteyes
Suitable for concreteyes
Suitable for gas concreteno
Suitable for natural stoneyes
Product codes
SAPGCU795
El number1380430
Product number1380430
GTIN/EAN7315881003006
Manufacturer part number1003003
Vendor material number1003003
Basic information
Package measurements (L x W x H)35 x 70 x 70 mm
Package volume0.01 l
Package weight0.001 kg
Base uniteach
Package units100 / 1000
Usage quantity1
UNSPSC31162104
BrandSCHNEIDER ELECTRIC
Country of OriginDE Germany
Customs tariff code39259009
