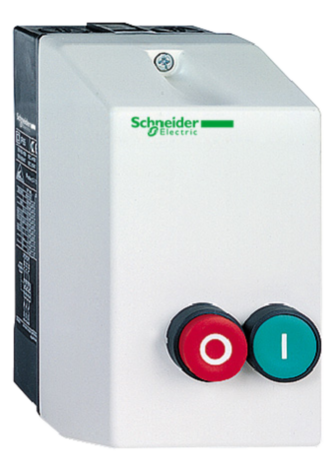

STARTER I KAPSLING LE1D25P7
Product number
4176590
Motorstarter Kapsl 25A 230VAC
Starter i kapsling. Motorvern bestilles separat.
Product details
Technical specifications
Type of motor starterDirect online starter (DOL)
With short-circuit releaseno
Rated control supply voltage AC 50 Hz230 - 230 V
Rated control supply voltage AC 60 Hz230 - 230 V
Rated control supply voltage DC0 - 0 V
Voltage type for actuatingAC
Rated operation power at AC-3, 230 V, 3-phase5.5 kW
Rated operation power at AC-3, 400 V11 kW
Rated power, 460 V, 60 Hz, 3-phase11 kW
Rated power, 575 V, 60 Hz, 3-phase15 kW
Rated operation current Ie25 A
Rated operation current at AC-3, 400 V25 A
Overload release current setting0 - 0 A
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
Product codes
SAPGCY125
El number4176590
Product number4176590
GTIN/EAN3389110541373
Manufacturer part numberLE1D25P7
Vendor material numberLE1D25P7
Basic information
Package measurements (L x W x H)160 x 250 x 200 mm
Package volume8 l
Package weight1.24 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85371000
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A310.2704
GWP uniteach
Data source for GWPEandoX
