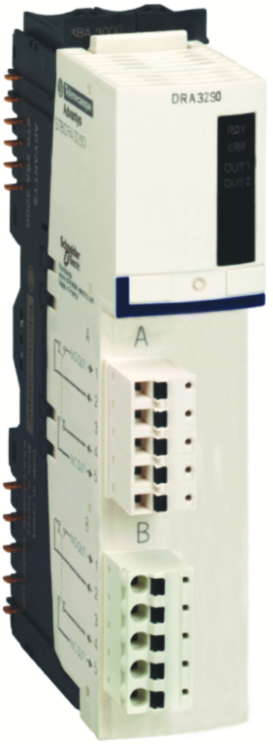

STB KIT 2 U,24VDC/230VAC R,7A STBDRA3290K
Product number
4503321
STB kit 2 ut, 24VDC/230VAC rel
STB kit 2 ut, 24VDC/230VAC rel N07
Product details
Technical specifications
Supply voltage DC24 - 24 V
Voltage type (supply voltage)AC/DC
Number of digital inputs0
Number of digital outputs6
Digital inputs configurableno
Digital outputs configurableyes
Input current at signal 10 mA
Type of voltage (input voltage)AC/DC
Type of digital outputRelay
Output current7 A
Permitted voltage at output24 - 230 V
Type of output voltageAC/DC
Short-circuit protection, outputs availableno
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Product codes
SAPGBV754
El number4503321
Product number4503321
GTIN/EAN3595863949131
Manufacturer part numberSTBDRA3290K
Vendor material numberSTBDRA3290K
Basic information
Package measurements (L x W x H)80 x 130 x 35 mm
Package volume0.364 l
Package weight0.195 kg
Base uniteach
Package units1 / 36
Usage quantity1
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginID Indonesia
Customs tariff code85389000
