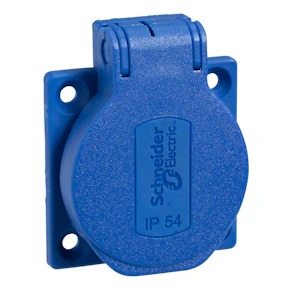

Stikkont. 2P 10/16A 50x50 blå
Product number
1501701
PratiKa stikkontakt - blå - 2P + E - 10/16 A - 250 V - tysk - IP54 - plan - bak
PK industrikontakter inneholder plugger,skjøtekontakter og tilpassede ut- og inntak for innfelling. Passer perfekt til Kaedra kapslinger. Kontaktene leveres i 16.32.63 og 125A varianter, IP 44 og IP 67. Nominell spenning 2308415V (opptil 690V på forespørsel). mekanisk styrke ihht. EN 50102:IK08. Motstand mot flammer og ekstreme temperaturer ihht. IEC 60695-2-1 850ºC
Product details
Technical specifications
ModelOther
MaterialPlastic
Material qualityThermoplastic
Halogen freeyes
Flange size50x50 mm
With hinged lidyes
Degree of protection (IP)IP54
Insert directionStraight
Connection systemScrewed terminal
ColourBlue
Number of poles3
Nominal current16 A
Nominal voltage250 V
For heavy conditions according to VDEno
Product codes
SAPCNZ938
El number1501701
Product number1501701
GTIN/EAN3303432319816
Manufacturer part numberPKS51B
Vendor material numberPKS51B
Basic information
Package measurements (L x W x H)51 x 63 x 43 mm
Package volume0.138 l
Package weight0.045 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginIT Italy
