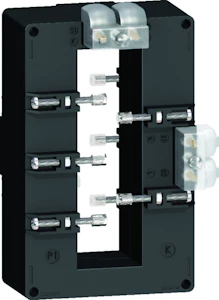

STRØMTR, 1000/5 SKINNE 38X127
Product number
8008122
Strømtrafo 1000/5A dobbel utgang til skinner 38x127
CT Strømtrafoer med 5 A sekundærstrøm benyttes sammen med Amperemeter, kWh-målere, måle-/kontrollrelèer, nettanalysatorer. tavleinstrumenter o.l. Leveres i utførelse for kabel, for skinner eller begge deler.
Product details
Technical specifications
ModelThrough-feed current converter
Rated primary current1000 A
Rated secondary current5 A
Rated secondary apparent power10 VA
Accuracy class1
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionno
Height opening127 - 127 mm
Width opening38 - 38 mm
Opening diameter0 mm
Snap mountingno
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPCPV047
El number8008122
Product number8008122
GTIN/EAN3606480618918
Manufacturer part numberMETSECT5DB100
Vendor material numberMETSECT5DB100
Basic information
Package measurements (L x W x H)170 x 135 x 100 mm
Package volume2.295 l
Package weight0.721 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginTN Tunisia
Customs tariff code85043100
