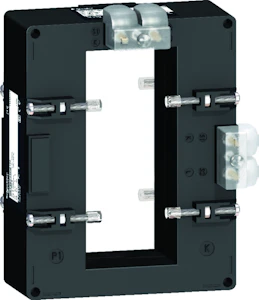

STRØMTR, 2500/5 SKINNE 52X127
Product number
8008129
Strømtrafo 2500/5A dobbel utgang til skinner 52x127
CT Strømtrafoer med 5 A sekundærstrøm benyttes sammen med Amperemeter, kWh-målere, måle-/kontrollrelèer, nettanalysatorer. tavleinstrumenter o.l. Leveres i utførelse for kabel, for skinner eller begge deler.
Product details
Technical specifications
ModelThrough-feed current converter
Rated primary current2500 A
Rated secondary current5 A
Rated secondary apparent power50 VA
Accuracy class1
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionno
Height opening128 - 128 mm
Width opening55 - 55 mm
Opening diameter0 mm
Snap mountingno
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPCPV054
El number8008129
Product number8008129
GTIN/EAN3303431123780
Manufacturer part numberMETSECT5DC250
Vendor material numberMETSECT5DC250
Basic information
Package measurements (L x W x H)170 x 104 x 136 mm
Package volume2.404 l
Package weight1.042 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41112109
BrandSCHNEIDER ELECTRIC
Country of OriginTN Tunisia
Customs tariff code85043100
