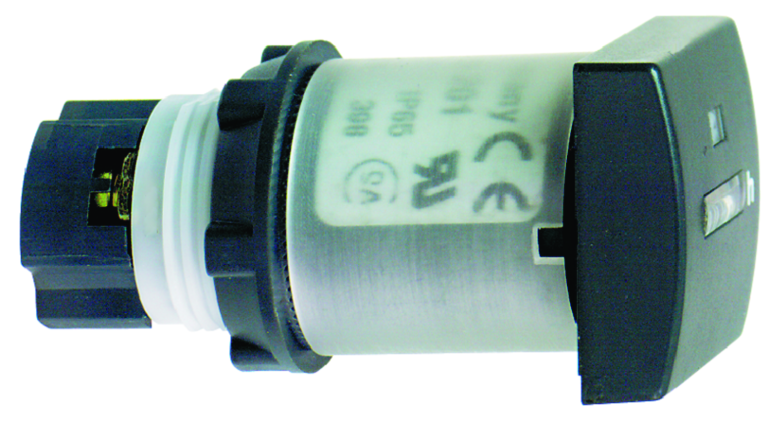

TIMETELLER 0-9999,9 12-24 XB5DSB
Product number
4303836
Timeteller for Ø22 mm hull 0..9999,9 timer uten nullstilling 12-24V AC/DC
Timeteller 0-9999,9 12-24
Product details
Technical specifications
Input voltage AC 50 Hz12 - 24 V
Input voltage AC 60 Hz12 - 24 V
Input voltage DC12 - 24 V
Frequency input voltage60 Hz
Voltage typeAC/DC
Suitable for distribution boardno
Width30 mm
Height30 mm
Width in number of modular spacings0
Measuring mechanismOther
Number of digits5
With reset functionno
Number of semiconductor outputs with signalling function0
Number of contact energized outputs with signalling function0
Product codes
SAPGAN212
El number4303836
Product number4303836
GTIN/EAN3389110102550
Manufacturer part numberXB5DSB
Vendor material numberXB5DSB
Basic information
Package measurements (L x W x H)34 x 54 x 86 mm
Package volume0.158 l
Package weight0.04 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121512
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code90291000
