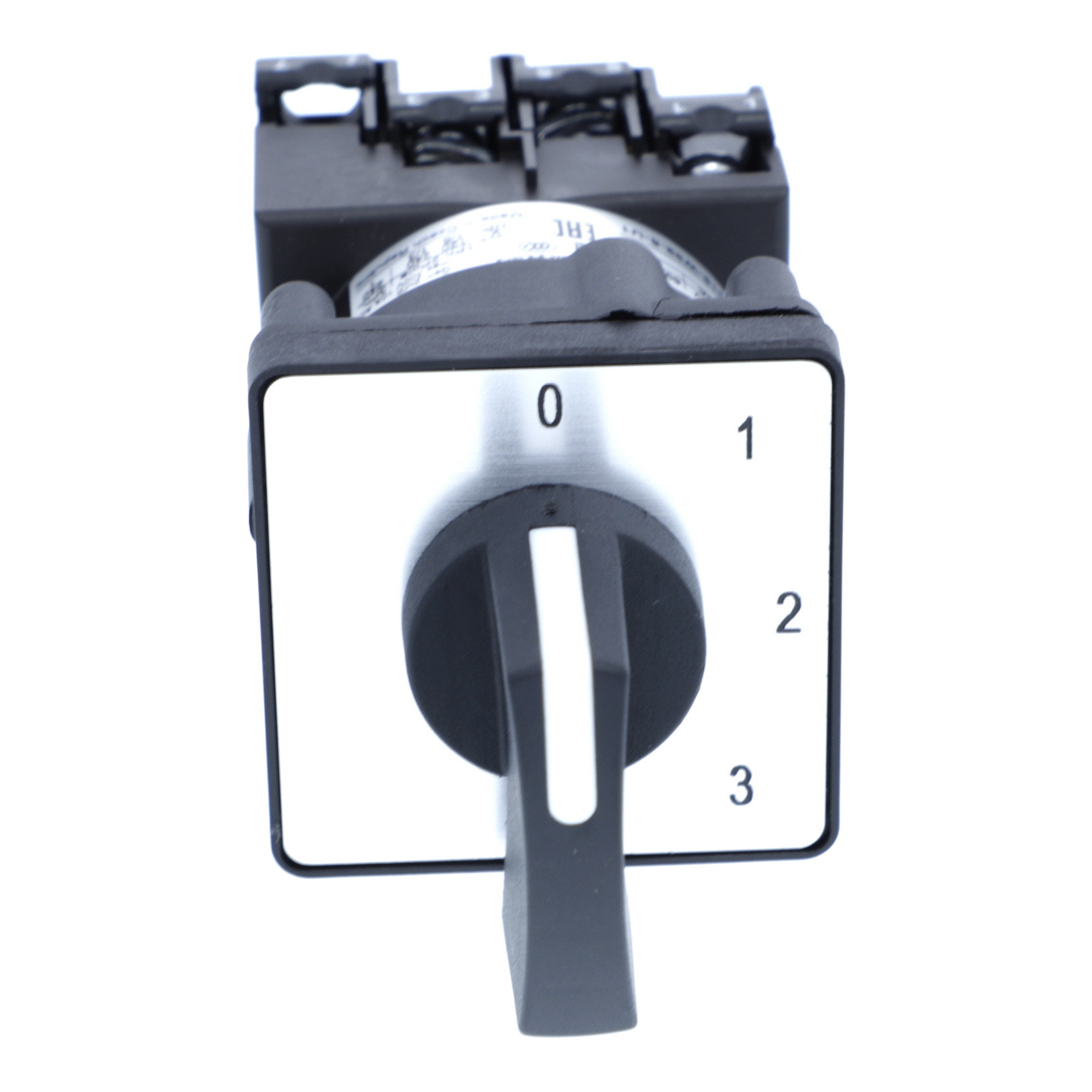

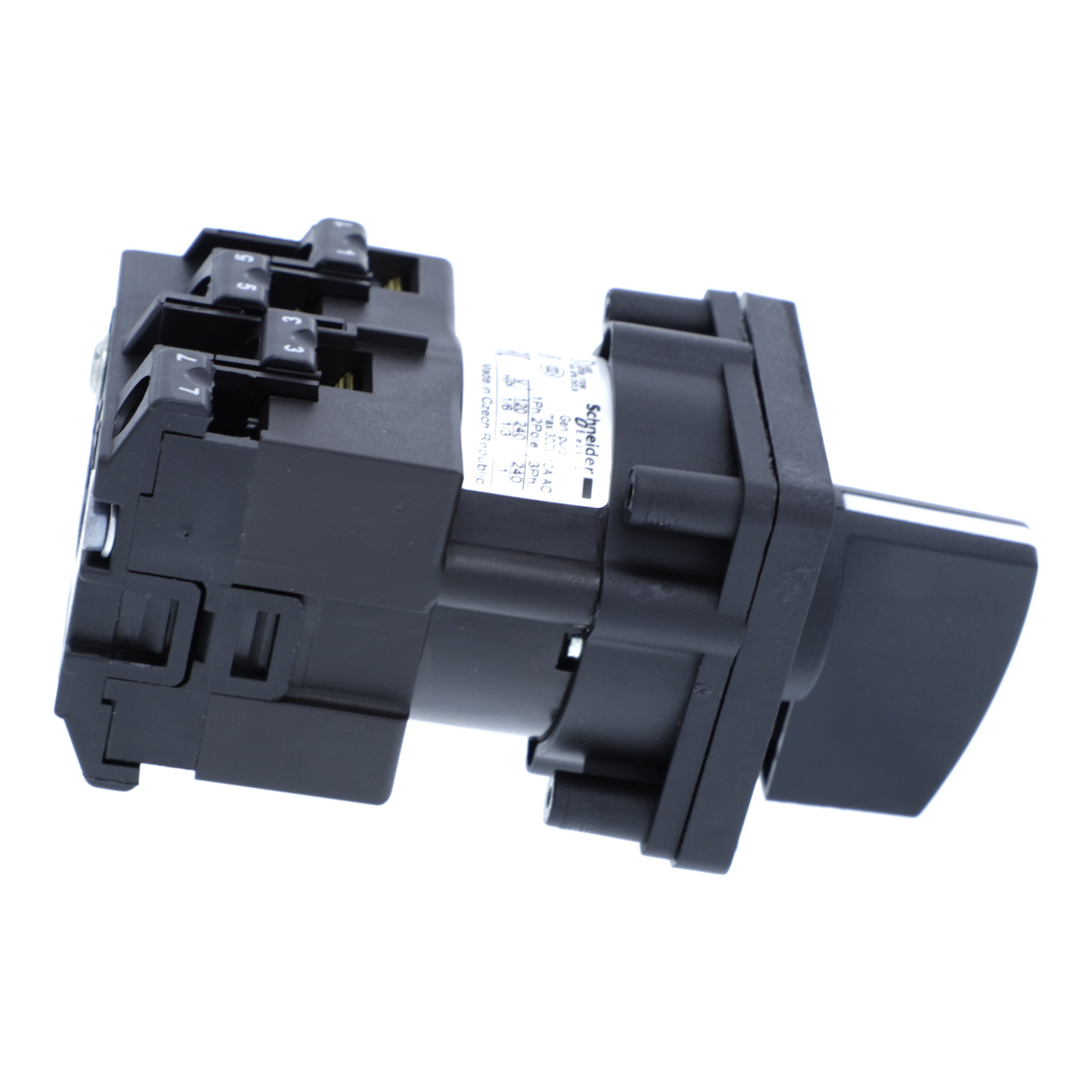

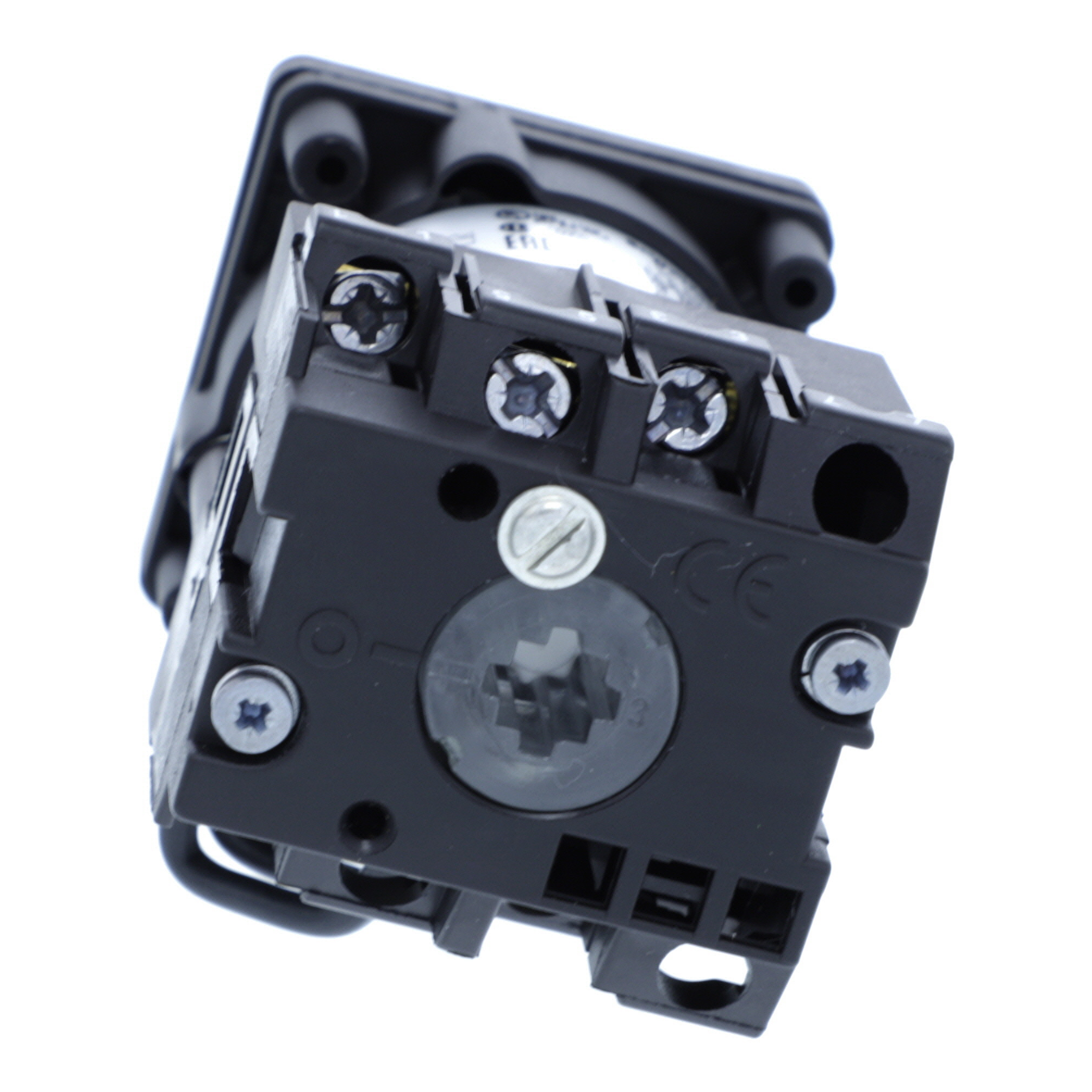

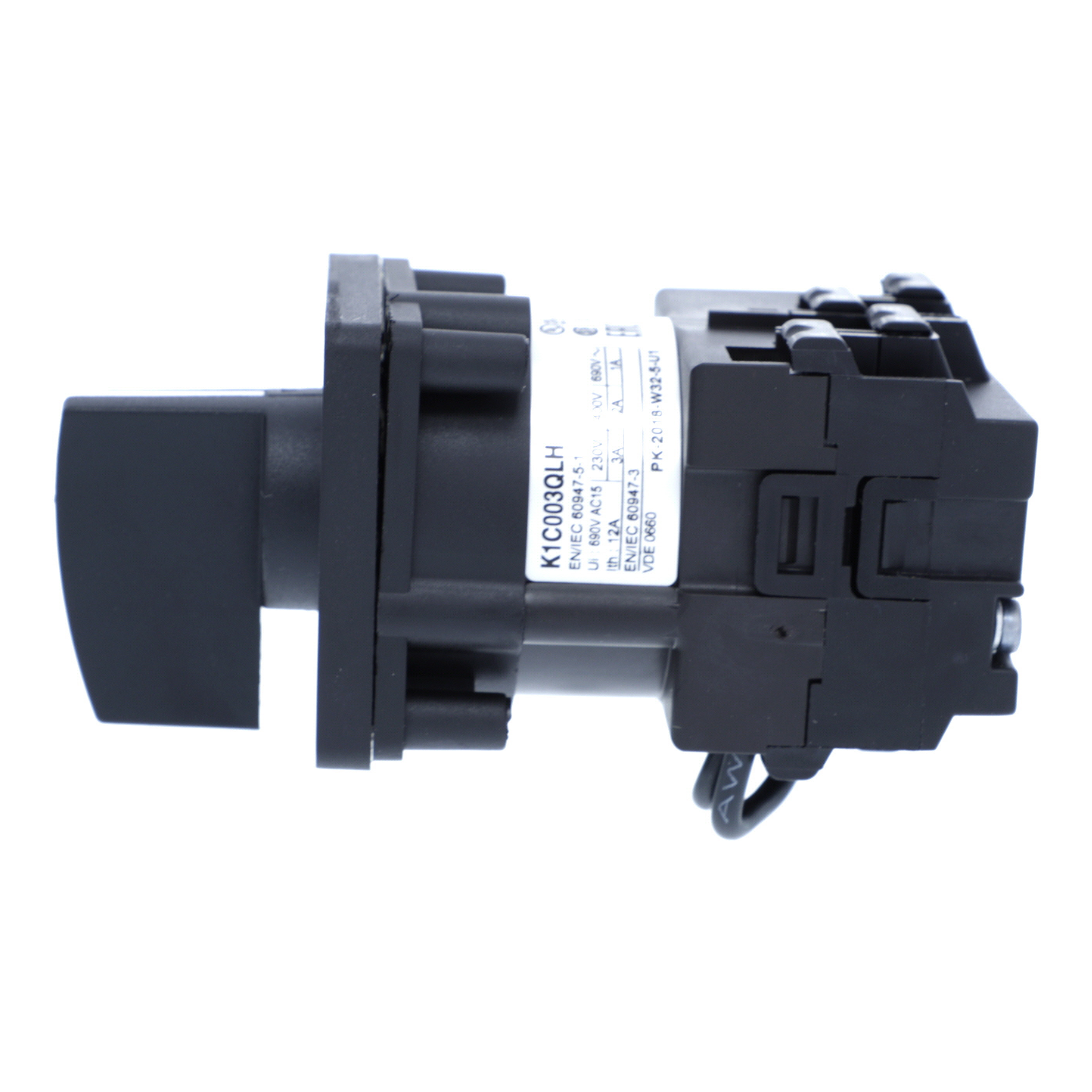

TRINNBRYTER 3 TRINN + 0.1-POL K1C003QLH
Product number
1401491
Kambryter 3 trinn +0 1-pol
Kontaktblokker for kambrytere. Vendegrep må velges separat.
Product details
Technical specifications
ModelLevel switch
Number of poles1
With zero (off) positionyes
With retraction in 0-positionno
Rated permanent current Iu12 A
Rated operation current Ie at AC-3, 400 V3.3 A
Rated operation power at AC-3, 400 V1.5 kW
Degree of protection (IP), front sideIP40
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Suitable for intermediate mountingyes
Product codes
SAPGAD520
El number1401491
Product number1401491
GTIN/EAN3389110978735
Manufacturer part numberK1C003QLH
Vendor material numberK1C003QLH
Basic information
Package measurements (L x W x H)110 x 65 x 65 mm
Package volume0.465 l
Package weight0.145 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandSCHNEIDER ELECTRIC
Country of OriginCZ Czech Republic
Customs tariff code85365000
