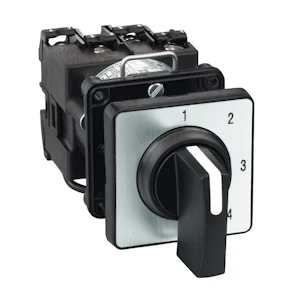

TRINNBRYTER 4 TRINN 1-POL Ø22 K1D004NCH
Product number
1401498
Kambryter 4 trinn 1-pol bunn
Kontaktblokker for kambrytere. Vendegrep må velges separat.
Product details
Technical specifications
ModelLevel switch
Number of poles1
With zero (off) positionno
With retraction in 0-positionno
Rated permanent current Iu12 A
Rated operation current Ie at AC-3, 400 V3.3 A
Rated operation power at AC-3, 400 V1.5 kW
Degree of protection (IP), front sideIP65/IP67
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Suitable for intermediate mountingyes
Product codes
SAPGAD523
El number1401498
Product number1401498
GTIN/EAN3389110978858
Manufacturer part numberK1D004NCH
Vendor material numberK1D004NCH
Basic information
Package measurements (L x W x H)110 x 67 x 65 mm
Package volume0.479 l
Package weight0.17 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandSCHNEIDER ELECTRIC
Country of OriginCZ Czech Republic
Customs tariff code85365000
