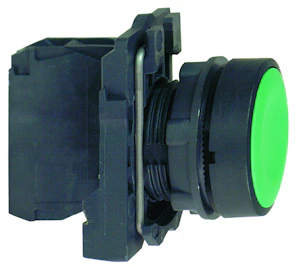

TRYKKNAPP GRØN 1NO1NC
Product number
4303468
Trykknapp komplett med fjærretur og plan trykkflate i grønn farge 1xNO+1xNC
TRYKKNAPP GRØN 1NO1NC
Product details
Technical specifications
Number of command positions1
Type of buttonFlat
Colour buttonGreen
Transparentno
Construction type lensRound
Hole diameter22.5 mm
Width opening0 mm
Height opening0 mm
Suitable for lightingno
Switching function latchingno
Spring-returnyes
Supply voltage lamp0 V
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Product codes
SAPCPY537
El number4303468
Product number4303468
GTIN/EAN3389110842029
Manufacturer part numberXB5AA35
Vendor material numberXB5AA35
Basic information
Package measurements (L x W x H)90 x 54 x 36 mm
Package volume0.175 l
Package weight0.045 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85365000
