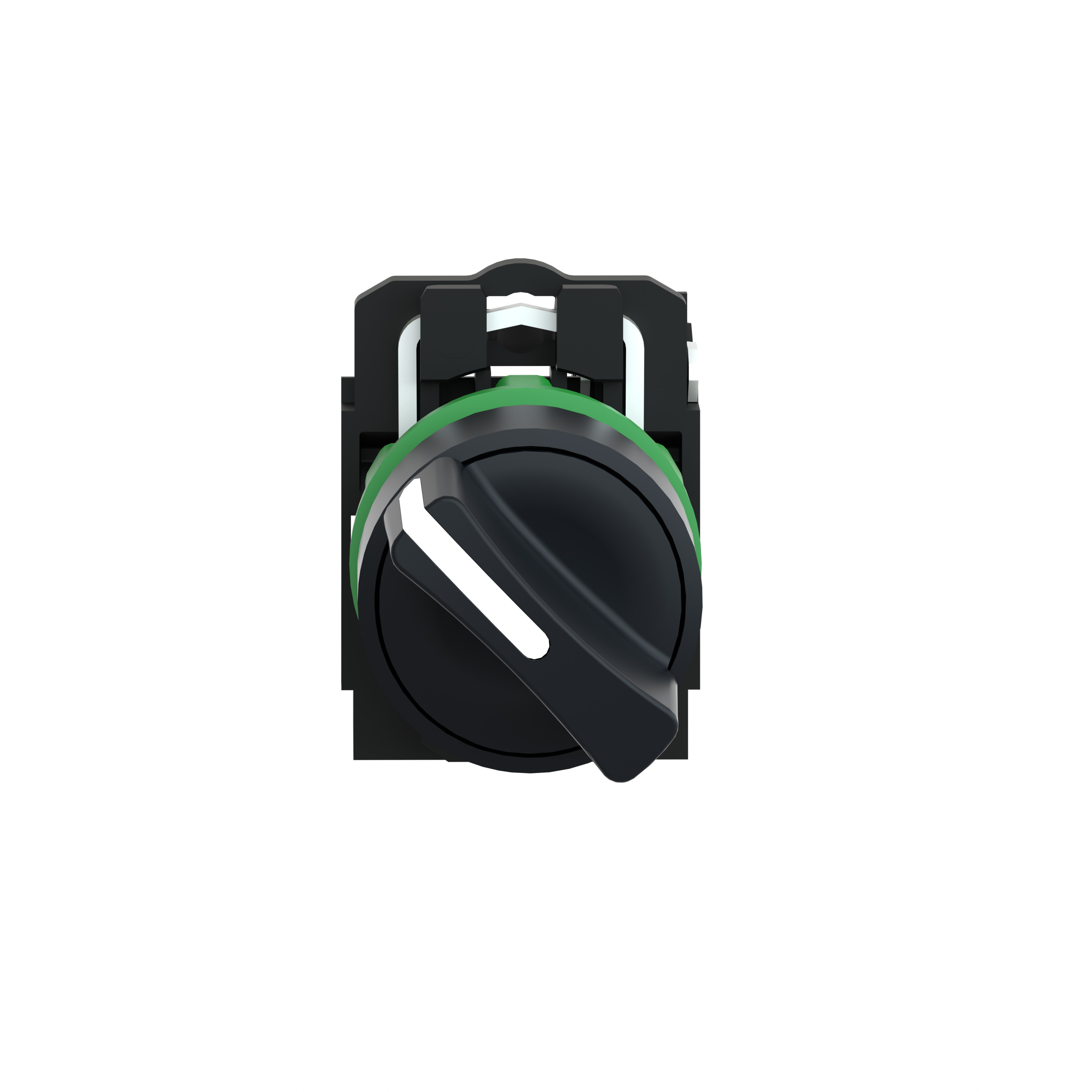

VEND KORT GREP 2 FAST POS. 1NO XB5AD21
Product number
4303800
Vender komplett med 2 faste posisjoner 1xNO
Komplette vendere i plast. Med kort og langt grep.
Product details
Technical specifications
Number of switch positions2
Type of control elementShort rotary handle
Suitable for lightingno
With light sourceno
Colour buttonBlack
Hole diameter22.5 mm
Width opening0 mm
Height opening0 mm
Switching function latchingyes
Spring-returnno
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)13
Supply voltage230 - 230 V
Number of contacts as normally open contact1
Number of contacts as normally closed contact0
Product codes
SAPGAN209
El number4303800
Product number4303800
GTIN/EAN3389110903447
Manufacturer part numberXB5AD21
Vendor material numberXB5AD21
Basic information
Package measurements (L x W x H)91 x 54 x 37 mm
Package volume0.182 l
Package weight0.043 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39122216
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85365000
