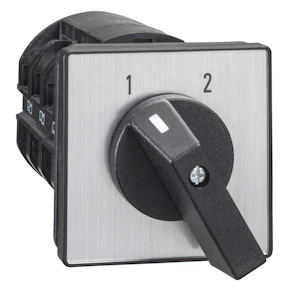

VENDER 2 POS.0 STILLING 3-POL K63F003UP
Product number
1402634
Vender 2 Pos.0 Stilling 3-Pol
Ett utvalg av komplette kambrytere. Vi bygger kambrytere til de fleste formål. Ta kontakt med oss for mer informasjon
Product details
Technical specifications
ModelReverser
Number of poles3
With zero (off) positionyes
With retraction in 0-positionno
Rated permanent current Iu63 A
Rated operation current Ie at AC-3, 400 V0 A
Rated operation power at AC-3, 400 V0 kW
Degree of protection (IP), front sideIP40
Degree of protection (NEMA), front sideOther
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Product codes
SAPGBH569
El number1402634
Product number1402634
GTIN/EAN3389110083378
Manufacturer part numberK63F003UP
Vendor material numberK63F003UP
Basic information
Package measurements (L x W x H)72 x 72 x 137 mm
Package volume0.71 l
Package weight0.49 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandSCHNEIDER ELECTRIC
Country of OriginAT Austria
Customs tariff code85365000
