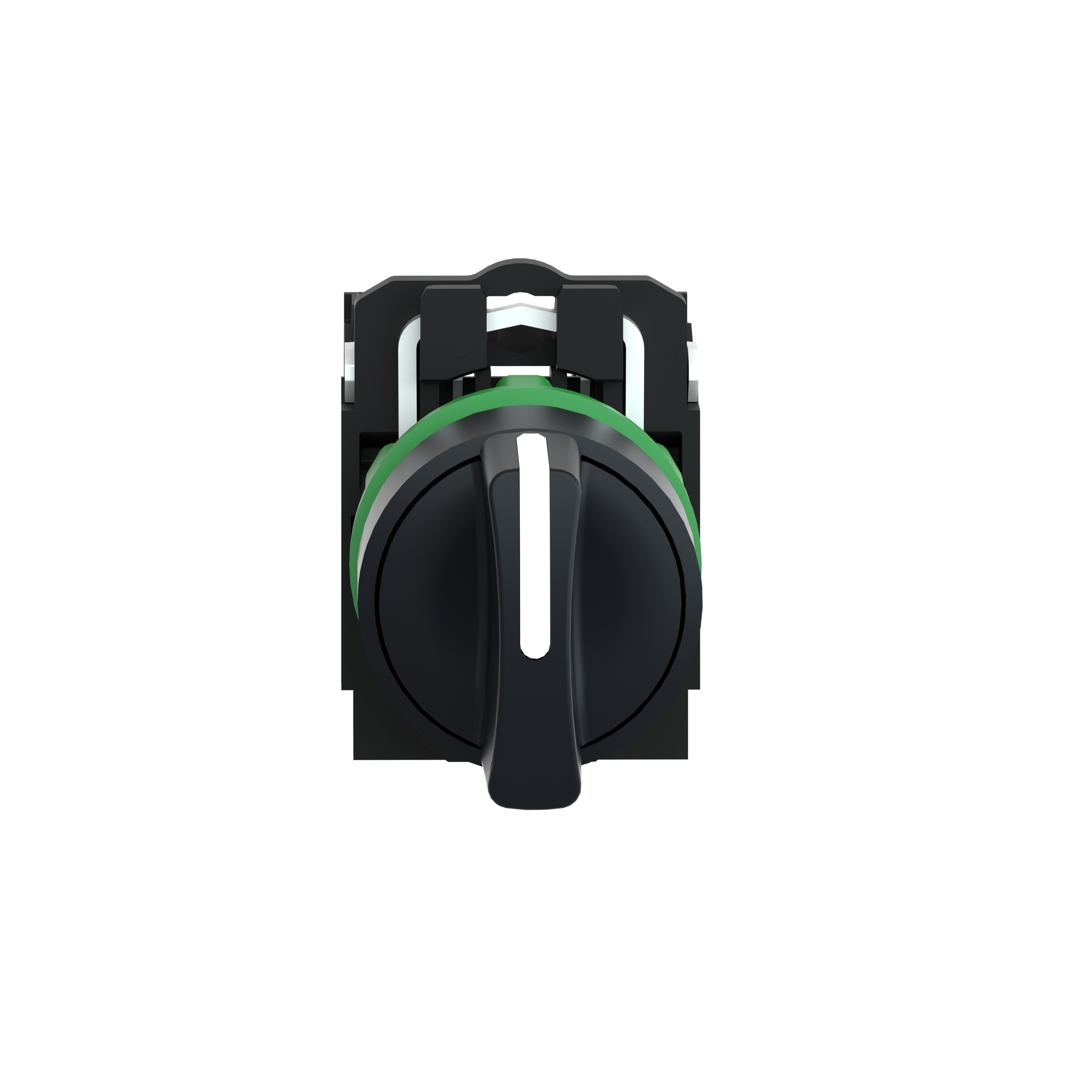

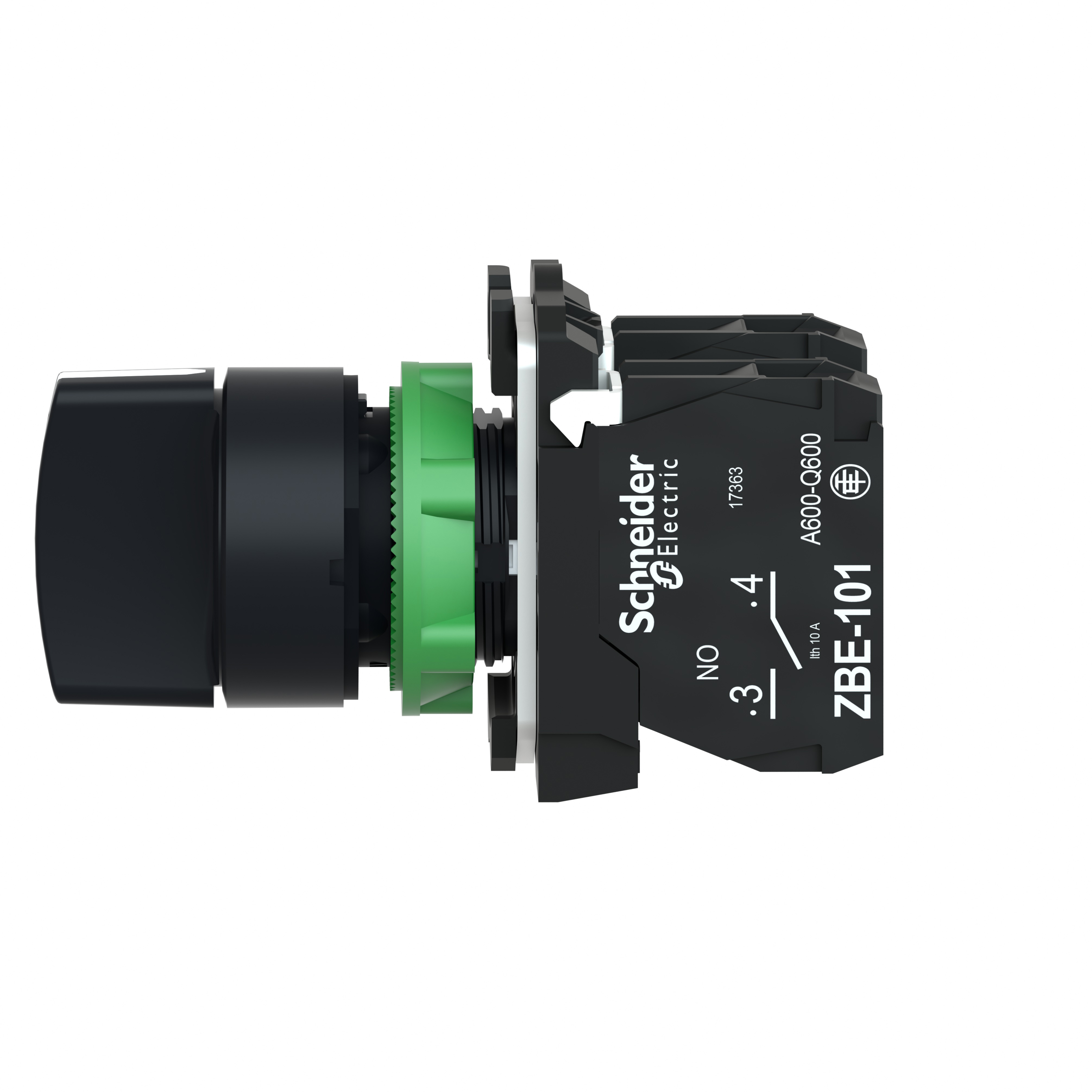

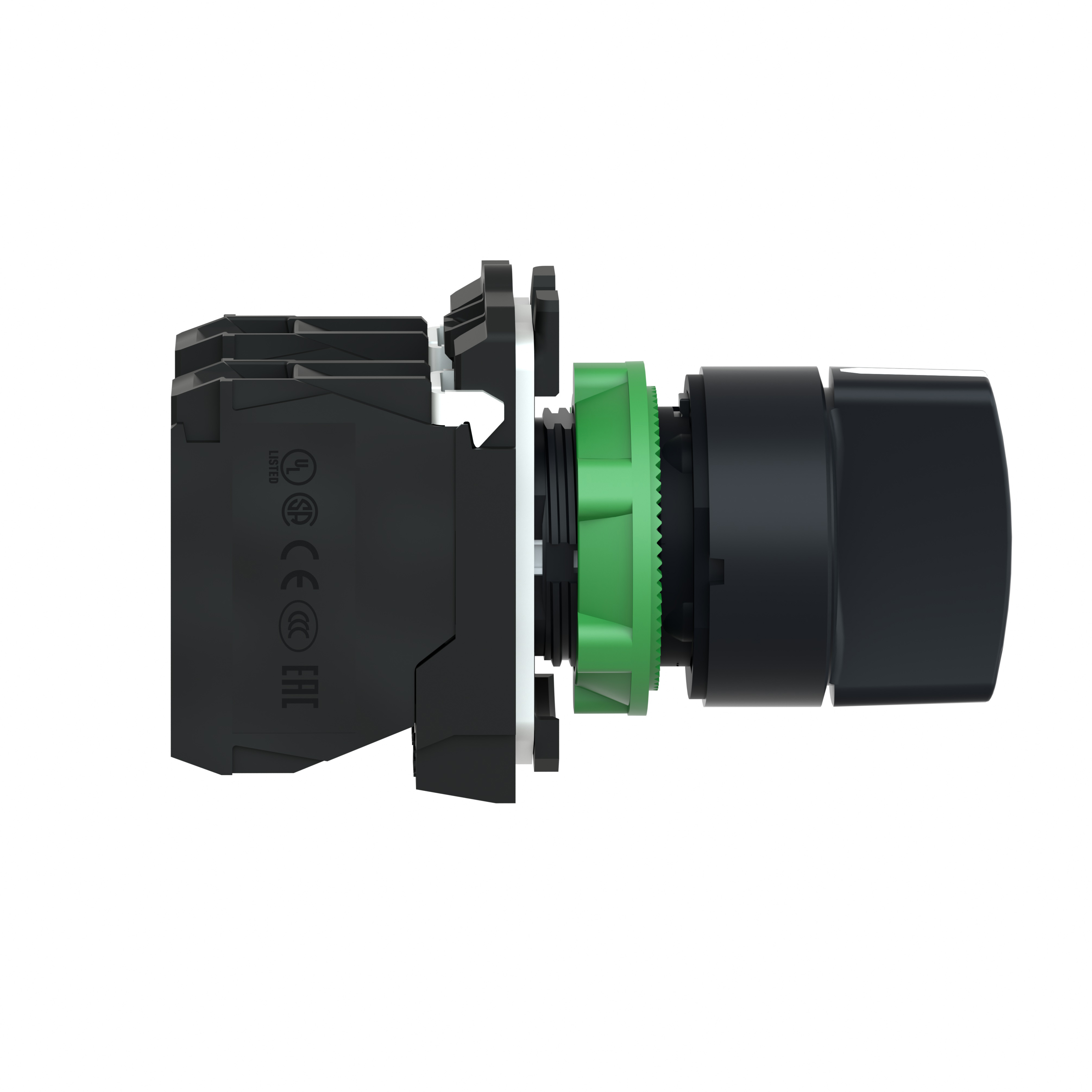

VENDER 3 FASTE POS. 2NO XB5AD33
Product number
4303801
Vender komplett med 3 faste posisjoner 2xNO
Komplette vendere i plast. Med kort og langt grep.
Product details
Technical specifications
Number of switch positions3
Type of control elementShort rotary handle
Suitable for lightingno
With light sourceno
Colour buttonBlack
Hole diameter22.5 mm
Width opening0 mm
Height opening0 mm
Switching function latchingyes
Spring-returnno
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)13
Supply voltage230 - 230 V
Number of contacts as normally open contact2
Number of contacts as normally closed contact0
Product codes
SAPGAW833
El number4303801
Product number4303801
GTIN/EAN3389110903454
Manufacturer part numberXB5AD33
Vendor material numberXB5AD33
Basic information
Package measurements (L x W x H)91 x 55 x 35 mm
Package volume0.175 l
Package weight0.052 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121512
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85365000
