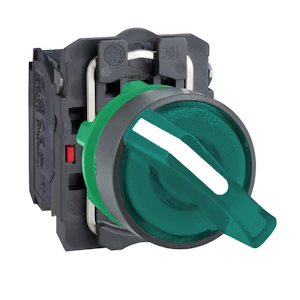

VENDER GRØNN 2 POS.24V AC/DC XB5AK123B5
Product number
4303802
Vender komplett med 2 faste posisjoner og LED i grønn farge 24VAC/DC 1xNO+1xNC
Komplette vendere med lys.
Product details
Technical specifications
Number of switch positions2
Type of control elementShort rotary handle
Suitable for lightingyes
With light sourceyes
Colour buttonGreen
Hole diameter22.5 mm
Width opening0 mm
Height opening0 mm
Switching function latchingyes
Spring-returnno
Degree of protection (IP)IP66
Degree of protection (NEMA)13
Supply voltage24 - 24 V
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Product codes
SAPGAW834
El number4303802
Product number4303802
GTIN/EAN3389110903546
Manufacturer part numberXB5AK123B5
Vendor material numberXB5AK123B5
Basic information
Package measurements (L x W x H)52 x 33 x 86 mm
Package volume0.148 l
Package weight0.006 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121512
BrandSCHNEIDER ELECTRIC
Country of OriginFR France
Customs tariff code85365000
