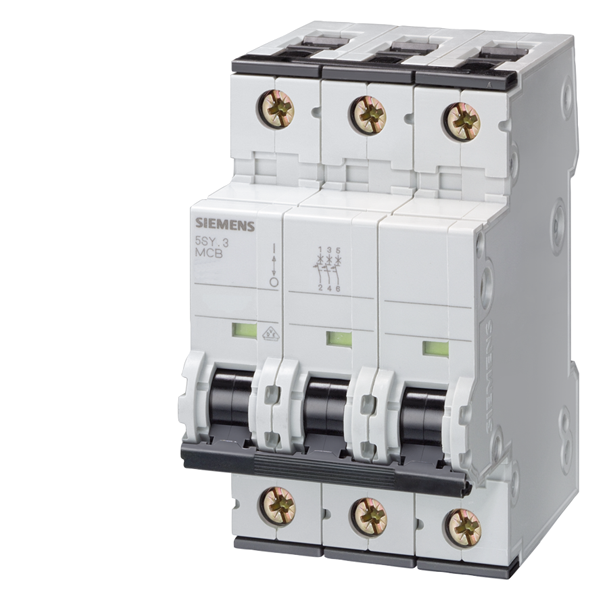

AUTOMAT 10KA 3-P 25A-D 5SY4 5SY4325-8
Product number
1645394
Automat 230/400V 10kA, 3-pol, D, 25A, D=70MM, tilkobling 0,75….35mm2, moment 2,5…3Nm
Automat 230/400V 10KA, 3-pol, D, 25A, D=70MM, tilkobling 0,75….35mm2, moment 2,5…3Nm, min spenning 24VUC, maks spenning 72VDC
Product details
Technical specifications
Built-in depth70 mm
Release characteristicD
Number of poles (total)3
Number of protected poles3
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20 kA
Frequency50-60 Hz
Current limiting class3
Product codes
SAPGBN612
El number1645394
Product number1645394
GTIN/EAN4001869202488
Manufacturer part number5SY4325-8
Vendor material number5SY4325-8
Basic information
Package measurements (L x W x H)94 x 58 x 84 mm
Package volume0.458 l
Package weight0.464 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121601
BrandSIEMENS
Country of OriginDE Germany
