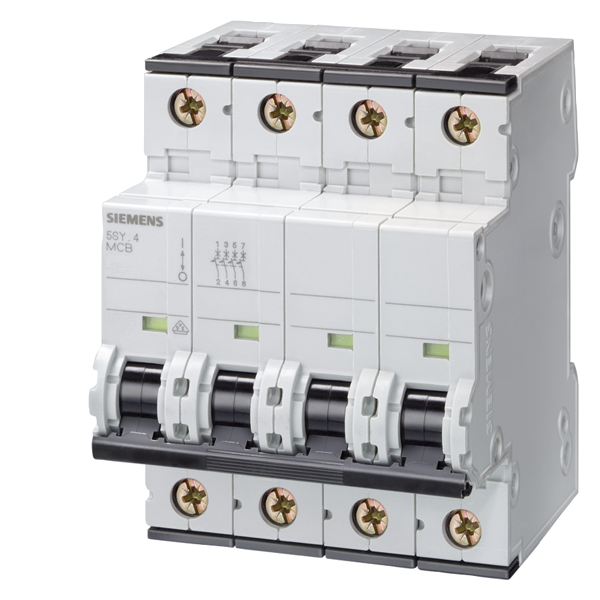

AUTOMAT 10KA3+N-POL C40 5SY4 5SY4640-7
Product number
1642576
Automat 230/400V 10kA, 3-pol+N, C, 40A, D=70MM, tilkobling 0,75….35mm2, moment 2,5…3Nm
Automat 400V 10KA, 3+N-pol, C, 40A, D=70MM, 5SY4
Product details
Technical specifications
Built-in depth70 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current40 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 - 60 Hz
Current limiting class3
Product codes
SAPGBD605
El number1642576
Product number1642576
GTIN/EAN4001869182803
Manufacturer part number5SY4640-7
Vendor material number5SY4640-7
Basic information
Package measurements (L x W x H)95 x 75 x 83 mm
Package volume0.591 l
Package weight0.629 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121601
BrandSIEMENS
Country of OriginDE Germany
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A34.4269
GWP uniteach
Data source for GWPEandoX
