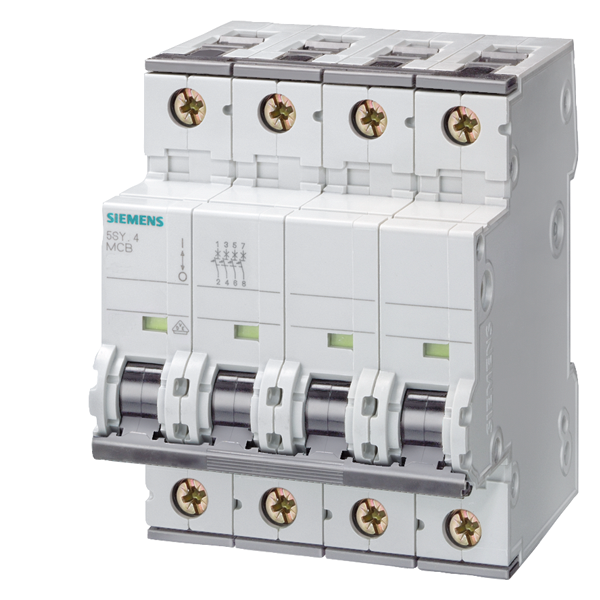

AUTOMAT 4-POL 0,3A-C 5SY8 5SY8414-7
Product number
1643054
Automat 230/400V 25kA, 4-pol, C, 0,3A, D=70MM, tilkobling 0,75….35mm2, moment 2,5…3Nm
Automat 230/400V Icn = 25kA, Icu = 70kA, 4-pol, C, 0,3A, D=70MM, tilkobling 0,75….35mm2, moment 2,5…3Nm, min spenning 24VUC, maks spenning 72VDC
Product details
Technical specifications
Built-in depth70 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current0.3 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V70 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V70 kA
Frequency50 - 50 Hz
Current limiting class3
Concurrently switching neutral conductorno
Overvoltage category3
Product codes
SAPGBN068
El number1643054
Product number1643054
GTIN/EAN4001869263960
Manufacturer part number5SY8414-7
Vendor material number5SY8414-7
Basic information
Package measurements (L x W x H)95 x 75 x 83 mm
Package volume0.591 l
Package weight0.641 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121601
BrandSIEMENS
Country of OriginDE Germany
