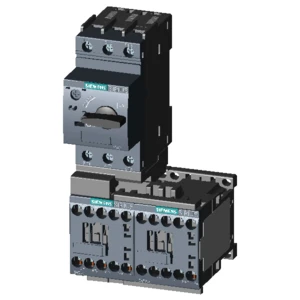

DRV 0.45 - 0.63A, AC 230V F 3RA2210-0GE15-2AP0
Product number
4161041
Dreierettningsvender 0.45 - 0.63A, AC 230V fjærklemmer
LOAD FEEDER FUSELESS REVERSING DUTY, AC 400V, SZ S00, 0.45...0.63A, AC 230V SPRING-LOADED CONNECTION FOR RAIL-MOUNTING, TYPE OF COORDINATION 2, IQ = 150KA (ALSO FULFILLS TYPE OF COORDINATION 1) 1NC (CONTACTOR)
Product details
Technical specifications
Type of motor starterOther
With short-circuit releaseyes
Rated control supply voltage DC-99999 - -99999 V
Voltage type for actuatingAC
Rated operation power at AC-3, 400 V0.18 kW
Rated operation current Ie0.6 A
Rated operation current at AC-3, 400 V0.6 A
Overload release current setting0.45 - 0.63 A
Number of auxiliary contacts as normally open contact-99999
Number of auxiliary contacts as normally closed contact-99999
Release classCLASS 10
Type of electrical connection of main circuitSpring clamp connection
With transformerno
Coordination class according to IEC 60947-4-3Class 2
Number of indicator lights0
Product codes
SAPGBQ006
El number4161041
Product number4161041
GTIN/EAN4011209795808
Manufacturer part number3RA2210-0GE15-2AP0
Vendor material number3RA2210-0GE15-2AP0
Basic information
Package measurements (L x W x H)212.5 x 97.5 x 119.5 mm
Package volume2.476 l
Package weight0.933 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Customs tariff code85364900
