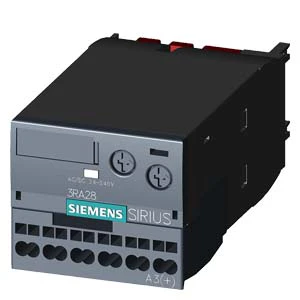

DS PÅ-FORS. FOR 3RT2 F 3RA2811-2CW10
Product number
4161066
Solide state tidsrele forsinket inn. 24...240V AC/DC, range 0.05...100S fjærklemmer
SOLID-STATE TIME RELAY ON-DELAY WITH SEMICONDUCTOR OUTPUT 24...240V AC/DC TIME RANGE 0.05...100S FOR SNAPPING ONTO THE FRONT FOR 3RT2 CONTACTORS SPRING-LOADED TERMINALS
Product details
Technical specifications
Switching functionOperating delayed
Setting time0.05 - 100 s
Number of contacts as normally open contact1
Number of contacts as normally closed contact0
Operating principleElectronic
Product codes
SAPGBP996
El number4161066
Product number4161066
GTIN/EAN4011209789852
Manufacturer part number3RA2811-2CW10
Vendor material number3RA2811-2CW10
Basic information
Package measurements (L x W x H)107 x 47 x 55 mm
Package volume0.277 l
Package weight0.095 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginCZ Czech Republic
Customs tariff code85364900
